2.5Gbps SFP OC-48/STM-16 SR-0 850nm 300m MMF Duplex LC DOM Transceiver Module
OC-48/STM-16 SR-0 2.5Gbps SFP 850nm MMF 300m DOM Duplex LC Transceiver Module
Description
The GIGAOPTO's GTS-L0824-02DC muti-mode transceiver is a dual fiber 2.5Gbps Small Form-factor Pluggable module suitable for 2.5Gb/s serial optical data communications application, such as SDH STM-16 I-16/SONET OC-48 SR-1/2x Fibre Channel. This SFP OC48 SR-0 provides 2.5Gb/s throughput up to 300 meters over multi-mode fiber (MMF) using 850nm wavelength via an LC connector.
The transmitter section incorporates a 850nm VCSEL laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed InGaAs PIN photodiode (PD) and trans-impedance preamplifier.
This transceiver is fully compliant with SFP Multi-Source Agreement (MSA) and SONET OC-48 SR standard.
Specification
| Form Type | SFP (Mini-GBIC) | Data Rate (Max) | 2.5Gb/s |
| Optical Connector | LC duplex | Transmission Distance | 0.3km |
| DOM | Yes | Fiber Mode | Multi-Mode Fiber |
| Centre Wavelength | 850nm | Environment |
C-Temp 0 to 70°C I-Temp -40 to 85°C |
| Power Supply Current | <300mA | Power Supply Voltage | 3.30V |
| Laser Type | VCSEL 850nm | PD Type | PIN |
| TX Optical Power | -9.5 to -3dBm | RX Sensitivity | < -18dBm |
| ER | > 9dB | RX Overload | > -3dBm |
| Protocols | MSA Compliant, IEC-60825 FDA | ||
Features
- Data rate up to 2.5Gbps
- Up to 300m on 50/125µm MMF
- 850nm VCSEL laser transmitter and PIN photo-detector
- Duplex LC optical interface
- Single 3.3V power supply voltage
- Hot-pluggable
- DDMI function available with internally calibrated mode
- Low power dissipation
- Receiver loss of signal output
- Transmitter disable input
- Metal enclosure provides lower EMI
- International ClassⅠlaser safety certified
- RoHS Compliant and Lead Free
- Compliant with SFP MSA (INF-8074i)
- Compliant with SFF-8472
Application
- Fast Ethernet
- Gigabit Ethernet
- SDH STM-16 switches and routers
- SONET OC-48 switches and routers
- 2x Fiber Channel
Ordering Information
| P/N | Description | Data Rate | Wavelength | Reach | Media | RX Sens. |
| GTS-L0824-02DC | OC-48/STM-16 SR-0 SFP | 2.5Gbps | 850nm | 300m | MMF | < -18dBm |
| GTS-L1324-02DC | OC-48/STM-16 SR-1 SFP | 2.5Gbps | 1310nmn | 2km | SMF | < -18dBm |
| GTS-L1324-15DC | OC-48/STM-16 IR-1 SFP | 2.5Gbps | 1310nm | 15km | SMF | < -18dBm |
| GTS-L1324-15DC | OC-48/STM-16 IR-1 SFP | 2.5Gbps | 1310nm | 15km | SMF | < -18dBm |
| GTS-L1324-40DC | OC-48/STM-16 LR-1 SFP | 2.5Gbps | 1310nm | 40km | SMF | < -27dBm |
| GTS-L1524-40DC | OC-48/STM-16 IR-2 SFP | 2.5Gbps | 1550nm | 40km | SMF | < -20dBm |
| GTS-L1524-80DC | OC-48/STM-16 LR-2 SFP | 2.5Gbps | 1550nm | 80km | SMF | < -28dBm |

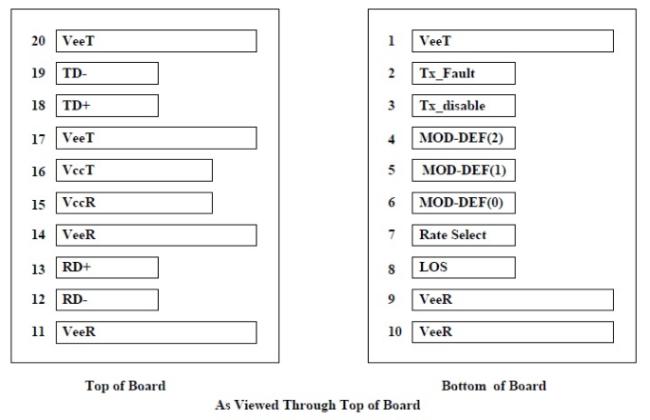

Pin Definition

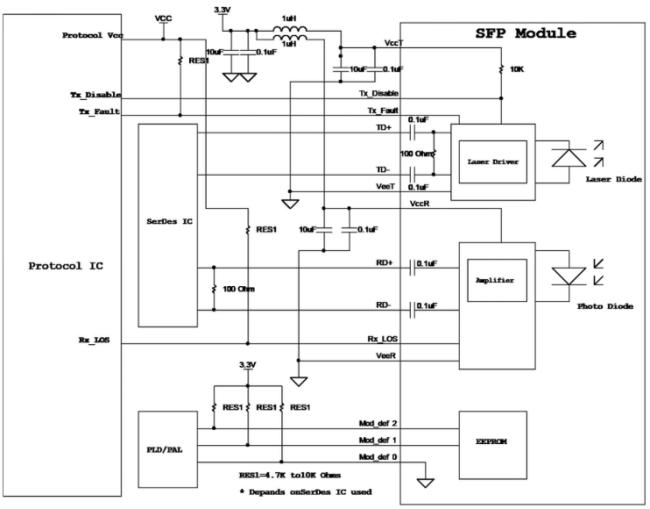

Typical Application Circuit

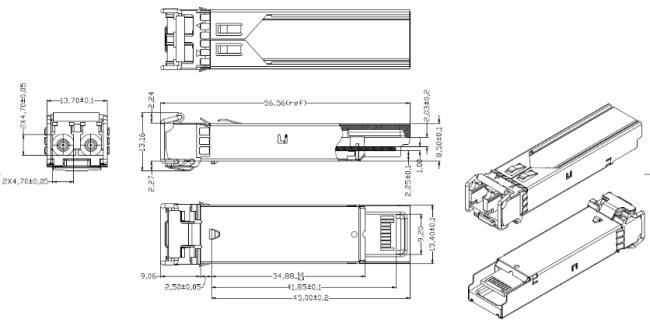

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
