155Mbps 1x9 Transceiver Module BIDI TX1310nm RX1550nm SMF 40km Single SC FC ST Transceiver Module
155Mbps 1x9 TX1310nm/RX1550nm BIDI 40km SMF LVPECL PECL SC/ST/FC Transceiver Module
Description
The GIGAOPTO's GT9-S3503-40x series transceivers are high performance, cost effective modules compliant with Gigabit Ethernet and Standard of IEEE-802.3. The transceiver supports data rate of 155Mbps and 40km transmission distance with single mode fiber (SMF), operating at the normal wavelength of Tx1310nm and Rx1550nm. The transmitter section incorporates an advanced FP and driver IC with temperature compensation and automatic power control function. The receiver section incorporates an efficient InGaAs/InP PIN photodiode and transimpedance with AGC for wide dynamic range.
The 1×9 BiDi Transceivers are suitable for Fast Ethernet, SDH STM-1 L-1.1, SONET OC-3 LR-1 and ATM designs at the data rate of 155 Mb/s.
Specification
| Product Package | 1x9 BiDi | Speed | 155Mbps |
| Interface | Single SC,FC,ST | Transmission Distance | 40km |
| DDM | No | Fibre Type | Single Mode |
| Warranty | 3 years | Ambient Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength | TX1310nm/RX1550nm | Power Supply Voltage | 3.3V or 5V |
| Soldering Temperature | <260°C | Supply Current | 250mA |
| Transmitter Type | FP | Receiver | PIN photo-detector |
| Average Output Power | -10 to -3dBm | RX Sens. | <-35dBm |
| ER | >10dB | Saturation | >-3dBm |
| Protocols | ITU-T G.957, STM-1/OC-3, RoHS | ||
Features
- 1×9 Package with SC/FC/ST Receptacle
- Up to 155Mb/s data links
- Single fiber bi-directional transceiver
- A type: 1310nmTx/1550nmRx
B type: 1550nmTx/1310nmRx
- Up to 40km transmission distance with single mode fiber
- Single +3.3V or +5V power supply
- Standard PECL or LVPECL data output with signal detect indicator
- Compatible with solder and aqueous wash processes
- Eye safety designed to meet Laser Class 1, Compliant with IEC 60825-1
- Compatible with RoHS6
- Operating Temperature 0℃~70 ℃ or -40℃~85℃
Application
- SONET / SDH
- Gigabit Ethernet
- Fiber Channel
- Fast Ethernet 100 Mb/s Links
- Digital video transmission system
Ordering Information
| Part Number | Description |
| GT9-S3503-40C | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V/5V, 0 to 70°C |
| GT9-S3503-40CF | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V/5V, 0 to 70°C |
| GT9-S3503-40CT | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V/5V, 0 to 70°C |
| GT9-S3503-40I | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V/5V, -40 to 85°C |
| GT9-S3503-40IF | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V/5V, -40 to 85°C |
| GT9-S3503-40IT | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V/5V, -40 to 85°C |
| GT9-S3503-40C3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V, 0 to 70°C |
| GT9-S3503-40CF3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V, 0 to 70°C |
| GT9-S3503-40CT3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V, 0 to 70°C |
| GT9-S3503-40I3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 3.3V,-40 to 85°C |
| GT9-S3503-40IF3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 3.3V,-40 to 85°C |
| GT9-S3503-40IT3 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 3.3V, -40 to 85°C |
| GT9-S3503-40C5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 5V, 0 to 70°C |
| GT9-S3503-40CF5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 5V, 0 to 70°C |
| GT9-S3503-40CT5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 5V, 0 to 70°C |
| GT9-S3503-40I5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, SC, SMF, 40km, 5V, -40 to 85°C |
| GT9-S3503-40IF5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, FC, SMF, 40km, 5V, -40 to 85°C |
| GT9-S3503-40IT5 | 1x9 Transceiver Module, 155M BiDi TX1310nm/RX1550nm, ST, SMF, 40km, 5V, -40 to 85°C |
Pin Definition

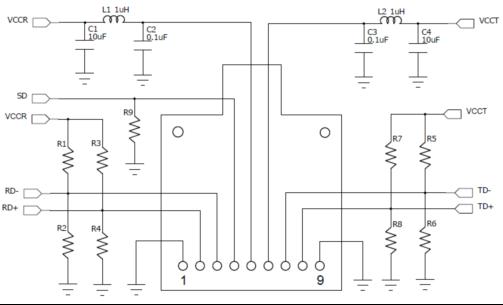

Typical Application Circuit

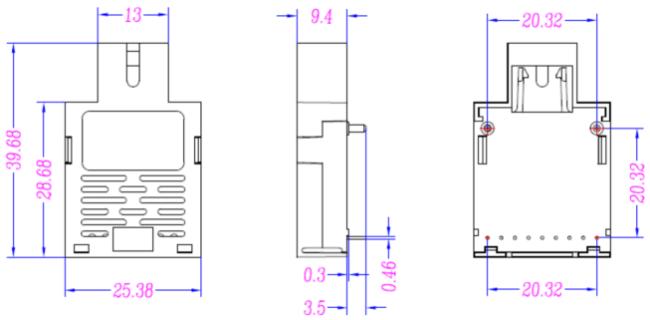

Package Outline
