Description
This XGPON BOSA is a high performance optical sub-assembly in single fiber by using 1270nm transmitter and 1577nm receiver.
The transmitter section uses a multiple quantum well 1270nm DFB laser supporting burst-mode operation. The receiver section uses a TO-can built in a long wavelength APD chip and a 10Gbps trans-impedance amplifier. High optical isolation and reflection free is achieved by using CWDM filter and optical isolator.
Absolute Maximum Ratings
| Item | Unit | Min | Max | Note |
| Forward Current for LD | mA | -- | 120 | |
| Reverse Voltage for LD | V | -- | 2 | |
| Forward Current for MPD | mA | -- | 2 | |
| Reverse Voltage for MPD | V | -- | 20 | |
| APD Reverse Voltage | V | -- | Vbr | |
| TIA Supply Voltage | V | -0.4 | 4 | |
| Operating Temp | °C | -40 | 85 | |
| Storage Temperature | °C | -40 | 85 | |
| Storage Relative Humidity | % | -- | 85 | |
| Soldering Temperature | °C | -- | 260 | (*1) |
| ESD threshold | V | 500 |
(*1): For soldering by iron and 10 seconds on leads
Transmitter Electro-Optical Characteristics (TC=25°C, CW)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Transmitter Bit Rate | -40~85°C | -- | 2.488 | -- | Gbps | |
| Threshold Current | Ith | 25°C | -- | 8 | 15 | mA |
| Ith | -40~85°C | -- | -- | 50 | mA | |
| Optical Output Power (*2) | Pf | 25°C, If=Ith+20mA | 2.5 | -- | -- | mW |
| Pf | 85°C, If=Ith+20mA | 1.5 | -- | -- | mW | |
| Slope Efficiency | SE | 25°C, If=Ith+20mA | 0.125 | -- | -- | mW |
| 85°C, If=Ith+20mA | 0.075 | -- | -- | mW | ||
| Forward Voltage | Vf | If=Ith+20mA | -- | 1.1 | 1.8 | V |
| Central Wavelength | lc | If=Ith+20mA, 25°C | 1260 | 1270 | 1280 | nm |
| Side Mode Suppression Ratio | SMSR | If=Ith+20mA, -40~85°C | 30 | -- | -- | dB |
| Monitor Current | Im | If=Ith+20mA | 100 | -- | 1200 | mA |
| Tracking Error (*3) | TE | Tc=-40~85°C | -1.5 | -- | 1.5 | dB |
(*2): Launched into 9/125mm SMF
(*3): DPf =10x log (Pf (Tc) /Pf (25°C)), Im hold(@Pf=2.5mW, 25°C)
Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V)
| Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Supply Voltage | Vcc | No loads | 3.0 | 3.3 | 3.6 | V |
| Supply Current | Icc | No loads | -- | -- | 50 | mA |
| Operating Wavelength | l | 1575 | 1577 | 1580 | nm | |
| Sensitivity | Sen | 9.953Gbps, NRZ, PRBS23, ER=8.2dB, BER=10E-3 | -- | -- | -29.5 | dBm |
| Overload | OL | -7.0 | -- | -- | dBm | |
| Breakdown Voltage | Vbr | Id=10mA | 22 | -- | 45 | V |
| Optical Return Loss | RL | l=1270nm | 10 | -- | -- | dB |
| l=1577nm | 20 | -- | -- | dB | ||
| Optical Crosstalk | X-talk | -- | -45 | -40 | dB | |
| Optical Isolation from External Source | ISO | l=1260~1560nm | 35 | -- | -- | dB |
| l=1600~1675nm | 35 | -- | -- | dB |
Other Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Mode Field Diameter | 8 | 9 | 10 | mm | ||
| Gladding Diameter | 123 | 125 | 127 | mm | ||
| Fiber Macro bend Loss | 0.05 | dB | Radius 16mm | |||
| Optical Connector Insertion Loss | -- | -- | 0.4 | dB | SC/APC connector | |
| Fiber Bending Radius | 25 | -- | -- | mm | ||
| Fiber Diameter | 0.8 | 0.9 | 1.0 | mm | ||
| Fiber Length | 280 | -- | 340 | mm | L | |
| Pull Force on LD Assembly | 30 | -- | -- | Kgw | ||
| Pull Force on APD Assembly | 15 | -- | -- | Kgw | ||
| Shear Strength on XY Welding | 30 | -- | -- | Kgw | ||
| Tension Force on Fiber Pigtail | 5 | -- | -- | N |
(*4): Connector fiber end face accord with IPC-8497-1

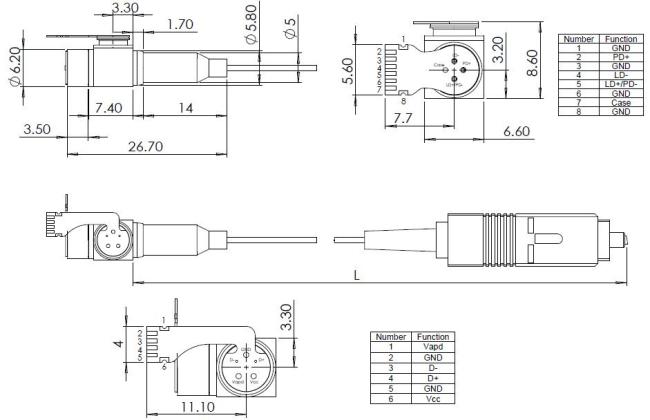

Dimension Outline
Features
- Single fiber pigtail type bi-directional transmission design for 10G XGPON ONU
- Asymmetric 9.953Gbps Tx burst mode and 2.488Gbps Rx CW data rate
- Laser welded transmitter and epoxy cured receiver package
- Integrated micro-optics CWDM filters for dual wavelength Tx/Rx operation at 1270/1577nm
- 1270nm InGaAsP/InP MQW DFB laser with high bandwidth InGaAs MPD
- 1577nm digital APD-TIA continuous mode receiver
- Flex PCB standard ping-out
- Optical reflection free with built-in 1270nm free space isolator
- High optical isolation from external 1490nm source, and low optical cross-talk from internal 1270nm source
- 0°C to +70°C commercial temperature with
- excellent temperature dependent power tracking error
Standard
- ITU-T 987.2 10G XGPON communication protocol
- Compliant with Telcordia GR-468 reliability test criterion
- Compliant with Telcordia GR-326 connector qualification standard
- Compliant with RoHS6 standard
Application
- 10G XGPON asymmetric SFP+ transceiver, ONU
- 10 Gigabit Ethernet Access Networks
