Description
The GIGAOPTO's GTS-L139A-10DC transceiver is part of a family of Video transceiver. It is designed to transmit/receive data rates from 50Mbps to11.88Gbps, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). GigaOptot’s Video transceiver supports SDI pathological pattern signals. The transceiver includes four sections: a DFB laser, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) , a driver IC, and a MCU controller. The transceiver is compliant with SFP+ Multi-Source Agreement (MSA) .
The video SFP+ Module is hot pluggable, easy for optical port upgrade and low EMI emission.
Specification
| Product Packaging | 10G SFP+ | Data Rate (Gbps) | 12Gbps |
| Optical Connector | LC | Reach | 10km |
| DOM | Yes | Fibre Type | SMF |
| Warranty | 3 years |
Temperature |
Commercial |
| Center Wavelength | 1310nm | Power Supply Voltage | 3.3V |
| Power Consumption | <1.0W | Total Current (Max) | 350mA |
| Transmitter Type | DFB | Receiver Type | PIN |
| Launched Power | -6 to +1dBm | RX Sensitivity | <-11dBm |
| Extinction Ratio | >3.5dB | RX Saturation | >+1dBm |
| Protocols | SFF-8472, SMPTE 259M, SMPTE 292-1, SMPTE 424M, SMPTE297-2006, SMPTE-2081 and SMPTE-2082 | ||
Features
- Up to 11.88Gbps data rate
- SD/HD/3G/6G/12G-SDI SFP Transceiver
- SMPTE 259, SMPTE 292-1, SMPTE 424, SMPTE-2081 and SMPTE-2082 compatible
- Metal enclosure for Lower EMI
- 1310nm DFB laser transmitter
- Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI
- Compliant with SFP+ MSA
- Duplex LC connector
- ROHS6 compliant(lead free)
- Single 3.3V power supply
- Hot-pluggable SFP footprint
- Operating case temperature range:0 to +70°C, -40 to +85°C
Application
- SMPTE 259, SMPTE 292-1, SMPTE 424, SMPTE-2081 and SMPTE-2082 Electrical-to-Optical Interfaces
- UHDTV / HDTV / SDTV Service Interfaces
- Other Video Interfaces

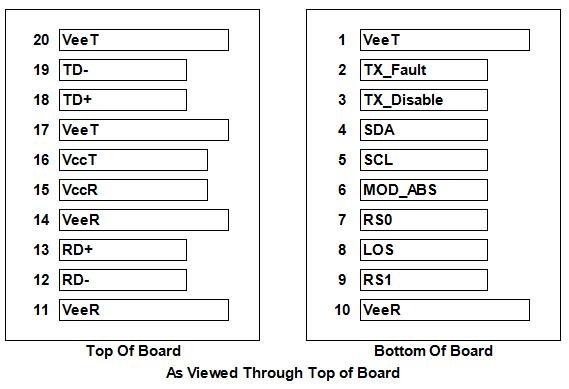

PIN Definition
