12G SDI CWDM Digital Video Optical Transceiver 1270~1450nm 20KM Duplex LC Single Mode Fiber MSA
12G SDI SMPTE CWDM SFP+ 1270nm-1450nm 20km SMF Dual LC MSA
Functional Specification
| Product Name | 12G-SDI CWDM SFP | Data Rate | 0.27~11.88Gbps |
| Module Type | Transceiver | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | CWDM (1270~1450)nm | Max Distance | 20km |
| Connector | Duplex LC | Media | single-mode fiber |
| Laser Type | DFB CWDM | PD Type | PIN |
| Supply Voltage | 3.3V | Supply Current | 300mA (Max) |
| TX Power | -1 ~ 2dBm | Sensitivity @11.88Gbps | < -11dB |
| Power-budget | 13dB | Sensitivity @ 5.94Gbps | < -13dB |
| Power Consumption | ≤1.0W | Sensitivity @ 2.97Gbps | < -15dB |
| ER. | >3.5dB | Receiver Overload | > 1.0dBm |
| OEM/ODM | Supported | Warranty | 3 years |
| Protocols | SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). | ||
Products Description of 12G-SDI CWDM SFP+ 1270nm~1450nm Transceiver Series
Gigaopto’s GTS-Cxx9A-10DC series is a single mode transceiver module designed to transmit/receive optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 11.8Gbps and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI. Max link reach up to 20km over Single-Mode Fiber (SMF) via CWDM wavelength from 1270nm to 1450nm channel.
The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Features
- SD/HD/3G/6G/12G-SDI SFP Transceiver
- ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
- Hot-Pluggable SFP Footprint Duplex LC Optical Transceiver
- Data rate max to 12Gb/s
- Distance up to 20km for 12G-SDI
- Reclocker built-in
- Support Video Pathological Patterns for HD-SDI,3G-SDI, 6G-SDI, and 12G-SDI: 1270nm to 1330nm
- CWDM System: Channel from 1270nm to 1450nm
- Single Transmitter + Single Receiver
- Based on Industry Standard SFP +
- SFF-8472 Digital Diagnostic Function
- single 3.3V power supply
- RoHS Compliant
- Operating case temperature range:0 to +70°C
- Class 1 Laser Safety Standard IEC-60825 Compliant
Ordering Information
| Part Number | Description | CWDM Channel | Max Reach |
| GTS-C279A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1270nm | 20km |
| GTS-C299A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1290nm | 20km |
| GTS-C319A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1310nm | 20km |
| GTS-C339A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1330nm | 20km |
| GTS-C359A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1350nm | 20km |
| GTS-C379A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1370nm | 20km |
| GTS-C399A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1390nm | 20km |
| GTS-C419A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1410nm | 20km |
| GTS-C439A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1430nm | 20km |
| GTS-C459A-20DC | 12G-SDI SMPTE CWDM SFP+ SMF Dual LC MSA | 1450nm | 20km |
Application
- SMPTE 2082 Compliant Electrical-to-Optical Interfaces
- High-density Video Routers

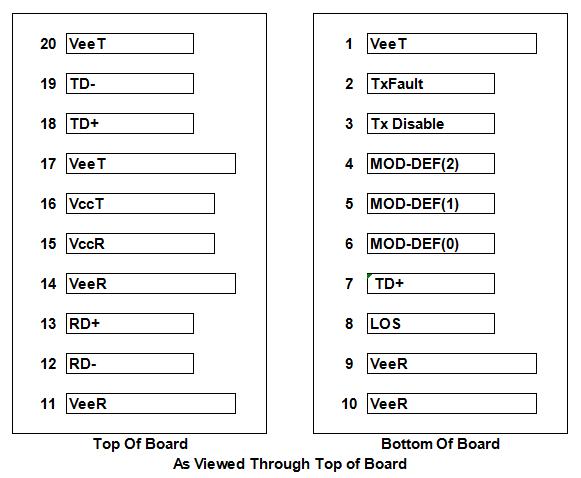

PIN Definition
