12Gb/S 1310nm 10km Video SFP Transceiver DOM LC SMF Single Transmitter Pathological Module MSA Pinout
12G-SDI SFP+ TX Single Optical Transmitter 10km LC DOM MSA
Functional Specification
| Product Name | 12G Video SFP+ | Data Rate | 270Mbps to 11.88Gbps |
| Module Type | Transmitter | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm -TX | Max Transmission | 10km |
| Connector | Simplex LC | Fiber Type | single-mode fiber |
| LD Type | DFB | Video Pathological Patterns Support | Yes |
| Supply Voltage | 3.3V | Supply Current | 160mA (Typ.) |
| TX Power | -4 ~ +1dBm | DOM | Supported |
| Extinction Ratio | >3.5dB | OEM/ODM | Supported |
| Power Consumption | ≤0.6W | Warranty | 3 years |
| Protocols | SFP+ MSA | ||
| Application | SD/HD/3G/6G/12G SDI | ||
Description
Gigaopto’s GTS-L139A-10DCT Single TX SFP+ Transmitter, which is specially designed for broadcast video transmission applications over SMF via 1310nm Wavelength with a simplex LC connector. It supports data rates from 270Mbps to 11.88Gbps, which is ideal for the application of 12G-SDI UHD video, 6G-SDI ultra-high-definition digital video, 2.97G 3G-SDI super high definition digital video, 1.485G HD-SDI high-definition digital video, and 270Mbps SDI standard definition digital video. It is compliant with SMPTE ST 2082-1 (12G UHD - SDI), ST 2081-1 (6G UHD - SDI), ST424 (3G SDI), ST 292-1 (HD - SDI), and ST259 (SD - SDI).
The transmitter is compliant with SFP+ Multi-Source Agreement (MSA)
Features
- SD/HD/3G/6G/12G-SDI SFP Transmitter
- SMPTE ST-292, ST-297, ST2081 and ST-2082 Compatible
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video pathological formats
- Metal enclosure for Lower EMI
- 1310nm DFB laser transmitter
- Operating data rate up to 11.88Gbps
- Distance up to 10km in 4K UHD
- Single LC connector Interface
- Hot Pluggable SFP+
- Compliant with SFP+ MSA Specification
- Single 3.3V power supply
- Operating case temperature: 0 to +70°C
- RoHS-6 compliant and Lead-Free
Application
- SMPTE ST-297-2015, ST2081 and ST-2082
- Compatible Electrical-to-Optical Interfaces.
- UHDTV/HDTV/SDTV Service Interfaces
- High-density Video Routers

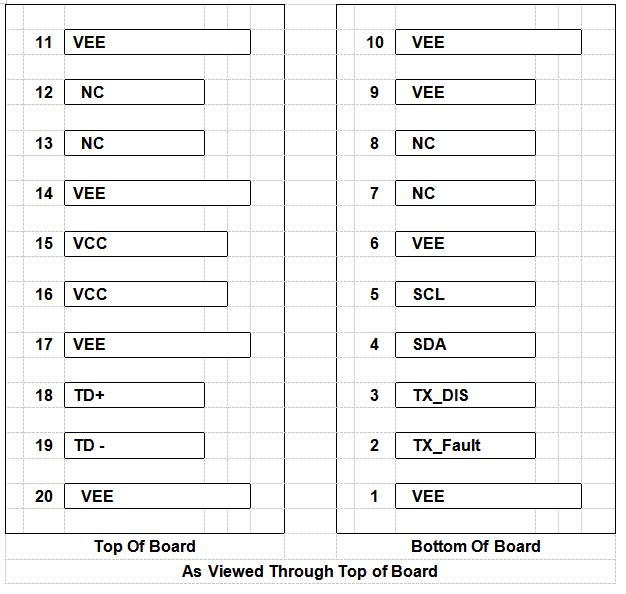

PIN Definition
