12G SDI CWDM Transmitter SFP+ Tx 1270~1450nm DFB Transmitter 20KM LC DOM MSA Pinout
12G-SDI SFP Single-Transmitter Module 1270~1450nm CWDM 20km Single LC SMF MSA Pinout
Functional Specification
| Product Name | 12G-SDI CWDM | Data Rate (Gbps) | 50Mbps~11.88Gbps |
| Module Type | Transmitter (1-Port TX) | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | CWDM 1270~1450nm | Max Distance | 20km |
| Connector | LC Simplex | Pathological Patterns | Supported |
| Laser Type | CWDM DFB | Fiber Type | SMF |
| Supply Voltage | 3.3V | Receiver Type | None |
| TX Power | -1~ +2dBm | Supply Current | 160mA (Typ.) |
| OEM/ODM | Supported | Warranty | 3-year |
| Protocols | SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). | ||
| Compliance | SFP MSA,RoHS | ||
Products Description of 12G-SDI CWDM 1270nm~1450nm SFP+ Tx MSA Pinout Series
Gigaopto’s GTS-Cxx9A-20DCT series is a single CWDM channel single mode transmitter module designed to transmit optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 11.8Gbps and max link up to 20km over SMF fiber via CWDM wavelength channel from 1270nm to 1450nm.
The transmitter is compliant with SFP Multi-Source Agreement (MSA) and is specifically designed to transmit the pathological patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI.
Features
- SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI Compatible
- Dara rate up to 11.88 Gb/s
- Distance up to 20km for 12G-SDI
- Reclocker built-in
- Support Video Pathological Patterns for HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI: 1270 nm to 1330 nm
- Single CWDM Transmitter: 1270 nm to 1470 nm, without Receiver
- Based on Industry Standard SFP +
- SFF-8472 Digital Diagnostic Function
- Single 3.3V power supply
- Operating Temperature: 0 to +70°C
- Hot-Pluggable
- RoHS Compliant
- Class 1 Laser International Safety Standard IEC-60825 Compliant
Ordering Information
| Part Number | Description | CWDM Channel | Max Reach | Clasp Color Code |
| GTS-C279A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1270nm / -C27 | 20km | Light Purple |
| GTS-C299A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1290nm/ -C29 | 20km | Sky Blue |
| GTS-C319A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1310nm/ -C31 | 20km | Yellow Green |
| GTS-C339A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1330nm/ -C33 | 20km | Yellow Ocher |
| GTS-C359A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1350nm/ -C35 | 20km | Pink |
| GTS-C379A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1370nm/ -C37 | 20km | Beige |
| GTS-C399A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1390nm/ -C39 | 20km | White |
| GTS-C419A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1410nm/ -C41 | 20km | Silver |
| GTS-C439A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1430nm/ -C43 | 20km | Black |
| GTS-C459A-20DCT | 12G-SDI SFP+ CWDM Single-Transmitter Modules MSA | 1450nm/ -C45 | 20km | Yellow Orange |
Applications
- Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
- UHDTV/HDTV/SDTV Service Interfaces

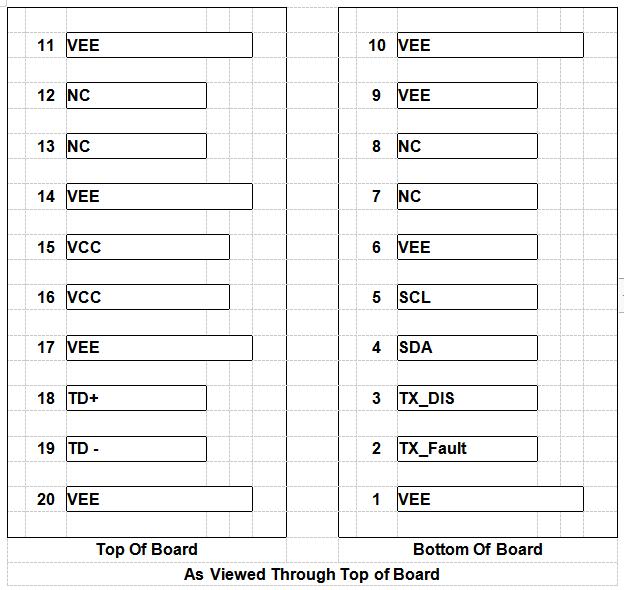

PIN Definition
