MSA 12G SDI Video SFP 1310nm 10km Single Optical Receiver Module For 12G 6G 3G HD SD-SD
12G SMPTE 10km SFP+ Single Receiver Module 1310nm Simplex LC DOM MSA Pinout for 12G/6G/3G/HD/SD-SD
Functional Specification
| Product Name | SFP+ Single-Receiver | Bandwidth | 50Mb/s~11.88Gb/s |
| Module Type | Video SFP Receiver | MSA/Non-MSA | MSA |
| Form Factor | SFP+ | Environment | Operating 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm | Max Cable Link | 10km |
| Interface /Polish | Simplex LC UPC | Cable Type | Single-mode fiber |
| Transmitter Type | N/A | Receiver Type | PIN |
| Supply Voltage | 3.3V | Supply Current | 150mA |
| Rx Sensitivity@ 11.88Gbps | <-11dBm | Rx Sensitivity@ 5.94Gbps | <-13dBm |
| Rx Sensitivity@ 2.97Gbps | <-15dBm | Receiver Overload | >1.0dBm |
| Digital Diagnostic Monitoring | Yes | Warranty | 36-Month |
| OEM/ODM | Supported | Weight | 20gram |
| Application | SMPTE ST-297-2015, ST2081 and ST-2082 Compatible Electrical-to-Optical Interfaces.UHDTV/HDTV/SDTV Service Interfaces,High-density Video Routers | ||
Products Description
Gigaopto’s GTS-LXX9A-10DCR small form-factor pluggable Video Receiver is designed for broadcast video transmission applications to receive data rates from 50Mb/s to 11.88Gb/s, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
The Receiver includes three sections: a PIN photodiode integrated with a trans-impedance preamplifier (TIA),Reclocker , and a MCU controller. They are compliant with SFP MSA.
The 12G-SDI Receiver is compatible with optical fiber equipment that utilizes SFP slots such as the Blackmagic Mini Converter, Blackmagic Studio Camera 4K, Teranex Converter, ATEM Talkback Converter 4K, ATEM Studio Converter, ShieldRock optical-fiber extenders, etc.
Features
- SMPTE ST-292, ST-297, ST2081 and ST-2082 Compatible
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video pathological formats
- Operating data rate up to 11.88Gbps
- Distance up to 10km in 4K UHD
- Single channel receiver with LC connector Interface
- Hot Pluggable SFP+
- Compliant with SFP+ MSA Specification
- Operating case temperature: 0 to +70°C
- RoHS-6 compliant and Lead-Free
Application
- Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
- UHDTV/HDTV/SDTV Service Interfaces

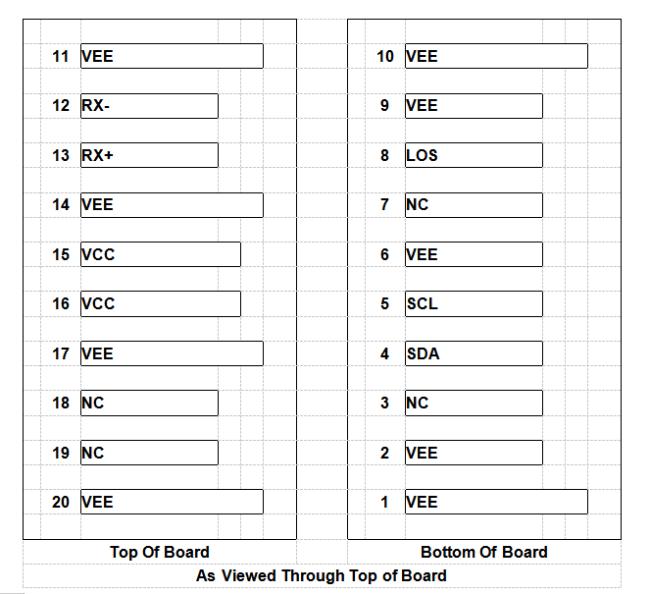

PIN Definition
