Non MSA 12G-SDI Video SFP 1310nm Dual Optical Transmitters Module 10km LC DOM
Price:
negotiable
MOQ:
1
Delivery Time:
1-5 work days
Brand:
Gigaopto
Product Description
12G SDI SMPTE SFP 1310nm 10km SMF Duplex LC Dual Transmitters Module Non-MSA
Functional Specification
| Part Number | GTS-L339A-10DCTT | Data Rate | 12Gb/s |
| Module Type | SFP+ Dual Transmitters | MSA/Non-MSA | Non MSA |
| Form Factor | SFP+ | Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm-Tx1 / 1310nm-Tx2 | Fiber Transmission | 10km |
| Interface | LC | Fibre Type | Single-mode fiber |
| Transmitter Type | DFB | Receiver Part | N/A |
| Power Supply Voltage | 3.3V | Supply Current | 550mA |
| Average Output Power | -5~1dBm | Extinction Ratio | >3.5dB |
| Digital Diagnostic | Supported | Warranty | 3 years |
| OEM/ODM | Supported | MTBF | 1,000,000Hours |
| Protocols | SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3GSDI), ST292-1(HD-SDI), and ST 259 (SD-SDI). | ||
Product Description
The Gigaopto’s GTS-L339A-10DCTT SFP+ Dual Transmitters module is designed to transmit dual lane of SDI signals (12G/6G/3G/HD/SD-SDI) over single mode fiber (9um/125um) via LC connectors by using two 1310 nm multiple quantum well DFB lasers.
The transmitter module is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
A maximum distance of 10 km is achievable with 12Gbps pathological signals.
Features
- SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI Compatible
- Data rate up to 12 Gb/s
- Transmission up to 10 km for 12G-SDI
- Reclocker built-in
- Support Video Pathological Patterns for HD-SDI,3G-SDI, 6G-SDI, and 12G-SDI
- Dual Transmitter with Duplex LC
- Based on Industry Standard SFP +
- SFF-8472 Digital Diagnostic Function
- Two Independent TTL Laser Disable Input
- Single +3.3 V Power Supply
- RoHS Compliant
- Commercial Temperature Operation: 0 to +70°C
- Hot-Pluggable
- Class 1 Laser International Safety Standard IEC-60825 Compliant
Application
- Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
- UHDTV/HDTV/SDTV Service Interfaces

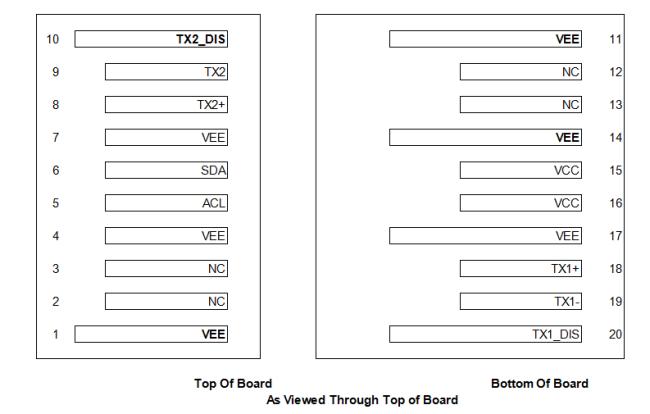

PIN Definition
