12G-SDI SFP+ Dual Receivers Module 10km LC DOM Non MSA Pinout
12G-SDI SFP+ Dual Receivers Module 10km LC DOM NON MSA Pinout
Functional Specification
| Part Number | GTS-LXX9A-10DCRR | Data Rate | 50Mbps~11.88Gb/s |
| Product Name | 12G-SDI SFP+ Dual-Receiver | MSA/Non-MSA | Non MSA |
| Module Type | Dual RX | Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1310nm-Rx1 / 1310nm-Rx2 | Cable Transmission | 10km |
| Fiber Connector | Duplex LC | Fiber Type | Single-mode fiber |
| Transmitter Part | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 260mA |
| Rx Sensitivity@ 11.88Gbps | <-11dBm | Rx Sensitivity@ 5.94Gbps | <-13dBm |
| Rx Sensitivity@ 2.97Gbps | <-15dBm | Receiver Overload | >1.0dBm |
| DIGITAL DIAGNOSTIC | Yes | Warranty Time | 3-year |
| OEM/ODM | Supported | MTBF | 1,000,000Hours |
| Protocols | SMPTE ST 259, SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 | ||
Product Description
The GTS-LXX9A-10DCRR_12G is a dual channel optical receiver module designed to receive optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI. It supports up to 12Gbps and is specifically designed to receive the pathological patterns for HD-SDI, 3G-SDI,6G-SDI, and 12G-SDI. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. A maximum distance of 10 km is achievable with 12Gbps pathological signals.
The Receiver includes these sections: PIN photodiodes integrated with a trans-impedance preamplifier(TIA),Reclockers , and a MCU controller.
Features
- SD/HD/3G/6G/12G-SDI SFP Dual-Receiver Module
- ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
- Metal enclosure for Lower EMI
- 2-channel PIN receivers w/o transmitter
- Distance up to 10km
- Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
- Dual LC connector
- With reclocker in the module
- Single 3.3V power supply
- Hot-pluggable SFP footprint
- Operating case temperature: 0 to +70°C
- RoHS-6 compliant and Lead-Free
Application
- Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
- UHDTV/HDTV/SDTV Service Interfaces

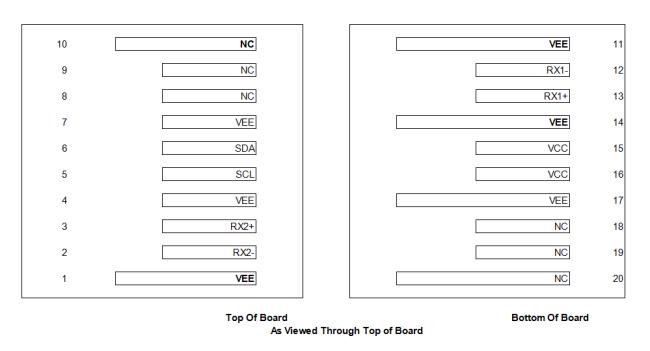

PIN Definition
