Non MSA Pinout 12G SDI SMPTE SFP 1270nm-RX1/1330nm-RX2 10km BiDi Dual Receivers Module LC DOM
12G SDI Dual Recievers SFP BiDi One Fiber 10km Simplex LC Connector Non MSA Pinout
Functional Specification
| Part Number | GTS-B239A-10DCRR | Data Rate | 11.88Gb/s |
| Product Category | 12G-SDI Dual-Receiver Module | MSA/Non-MSA | Non MSA |
| Package Type | SFP+ BiDirectional 2Rx | Temperature | 0 to 70°C (32 to 158°F) |
| Wavelength | 1270nm-Rx1 / 1330nm-Rx2 | Max Fiber Length | 10km |
| Fiber Connector | Simplex LC | Fiber Type | SMF |
| Transmitter Type | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 260mA |
| Rx Sen.@ 11.88Gbps | <-11dBm | Rx Sen.@ 5.94Gbps | <-13dBm |
| Rx Sen.@ 2.97Gbps | <-15dBm | Rx Overload | >1.0dBm |
| DOM | Support as default | Warranty Time | 36-month |
| OEM/ODM | Supported | Weight | 0.025kg |
| Protocols | SMPTE ST 259, SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 | ||
Description
Gigaopto's GTS-B239A-10DCRR Bidirectional dual-receiver optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF).
It integrated 2 photodiode into one BOSA and can be deployed in one fiber receive solution with simplex LC connectors.
The receiver module is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).
Real time digital diagnostic monitoring functions are available via an I2C, as defaulted by SFF-8472.
Features
-
SD/HD/3G/6G/12G-SDI SFP Dual-Receiver Module
-
ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
-
Metal enclosure for Lower EMI
-
2-channel PIN receivers w/o transmitter
-
Distance up to 10km
-
Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
-
Simplex LC connector
-
With reclocker in the module
-
Single 3.3V power supply
-
Hot-pluggable SFP footprint
-
Operating case temperature: 0 to +70°C
-
RoHS-6 compliant and Lead-Free
Application
-
Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
-
UHDTV/HDTV/SDTV Service Interfaces

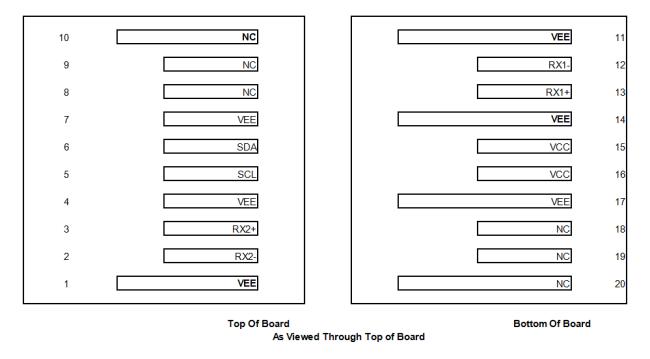

PIN Definition
