3G SDI SMPTE SFP 1310nm 2km SMF Transceiver Modules Duplex LC DOM MSA Pinout with Video Pathological Patterns
SMPTE 3G SDI SFP Transceiver 1310nm 2km Dual LC Optical Transmitter + Receiver Module MSA Pinout
Functional Specification
| Product Name | SMPTE 3G SFP Transceiver | Bandwidth | 50Mbit/s - 2.97Gbit/s |
| Module Type | Transmitter + Receiver | MSA/Non-MSA | MSA |
| Form Factor | SFP | Temperature Range | Commercial/Industrial |
| Center Wavelength | 1310nm | Max Reach | 10km |
| Fiber Connector | Dual LC | Fiber Type | SMF |
| Transmitter Type | FP | Receiver Type | PIN |
| Transmitter Power | -8 ~ 0dBm | Rx Sensitivity (SD-SDI) | < -16dBm |
| Rx Sensitivity (HD-SDI) | < -15dBm | ||
| Rx Sensitivity (3G-SDI) | < -14dBm | ||
| Extinction ratio | > 5dB | Receiver Overload | > -3dBm |
| Power Consumption | ≤1W | Warranty Time | 3 years |
| DOM/DDM | Support as default | OEM/ODM | Yes |
| Video Pathological Patterns Support | SMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates | ||
| Compliance | SFP MSA , SFF-8472,SMPTE 297M-2006 | ||
Description
Gigaopto’s GTS-L1330-10DC SMPTE 3G SDI Video Transceiver Module is designed to transmit/receive data rates from 50Mbps to 2.97Gbps over single-mode fiber max transmission link up to 2km, and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
This 3G SDI SFP is compatible with SFP Multi-Source Agreement (MSA). Real time digital diagnostic monitoring functions are available via an I2C, as defaulted by SFF-8472.
Features
- SMPTE 297-2006 Compatible
- Hot-Pluggable SFP
- Bandwidth from 50 Mb/s to 2.97 Gb/s
- Optical Link up to 2km for 3G-SDI
- Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
- 1310nm FP laser and PIN photo-detector
- Hot-pluggable SFP footprint
- SFP MSA compliant
- Digital Diagnostic functions available through the I2C interface
- Single 3.3V Power Supply
- Low Power Consumption
- Operating case temperature range: 0 to +70°C
- RoHS compliant and Lead-Free
Application
- SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces. HDTV/SDTV Service Interfaces.

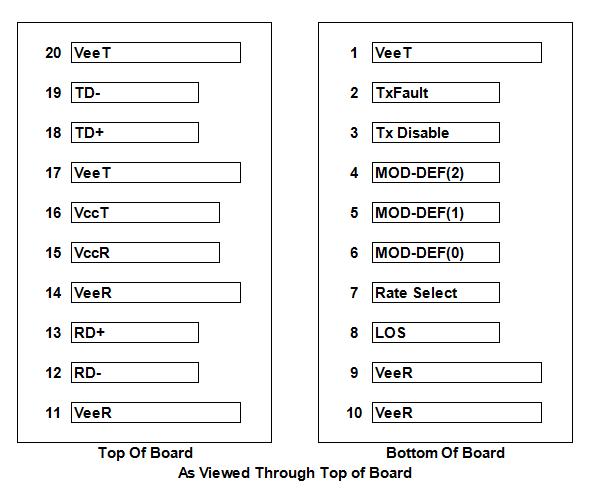

PIN Definition
3G SDI SFP Transceiver, 1310nm FP+PIN, 2km Dual LC, MSA Pinout, SD/HD/3G SDI
