MSA 3G SD HD 3G SDI SFP Transceiver 1310nm 40KM DFB PIN Optical Transmitter Receiver Modules Dual LC DOM
40km 1310nm DFB/PIN Transmitter & Receiver Transceiver Module with Video Pathological Patterns MSA Pinout
Functional Specification
| Product Name | 3G-SD/HD/3G-SDI SFP | Bandwidth | 50Mb/s - 2.97Gb/s |
| Module Type | Transmitter + Receiver | MSA/Non-MSA | MSA |
| Packaging | SFP | Temperature Range | 0 to 70°C (32 to 158°F) |
| Center Wavelength | 1310nm | Max Cable Reach | 40km |
| Connector | Dual LC | Fiber Type | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -2 ~ +3dBm | Extinction ratio | > 5dB |
| Rx Sensitivity @ SD-SDI | <-16dBm | Rx Sensitivity @ HD-SDI | <-15dBm |
| Rx Sensitivity @ 3G-SDI | <-14dBm | Receiver Overload | > 0dBm |
| Power Consumption | ≤1W | Digital Diagnostic | Support as default |
| Protocols | SFP MSA | Warranty Time | 3 years |
| OEM/ODM | Supported | Part Number | GTS-L1330-40DC |
| Video Pathological Patterns Support | Yes | ||
| Application |
SMPTE 424M (2.97Gb/s) SMPTE 292M (1.485Gb/s) SMPTE 259M (270/360Mb/s) High-density Video Router Broadcast cameras Gigabit Ethernet,OC-48 and 2x Fiber Channel |
||
Description
Gigaopto’s GTS-L1330-40DC 3Gbps transmitter & receiver transceiver module is for dual-channel video transmission applications up to 40km over single-mode fiber (SMF).
The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.The module is fully compliant with SMPTE 297M-2006. It is suitable for high-definition digital broadcasting applications.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
It is compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
Features
- SD/HD/3G-SDI SFP Transceiver
- SMPTE 297-2006 Compatible
- Hot-Pluggable SFP
- Bandwidth from 50Mb/s to 2.97Gb/s
- Optical Link up to 40km for 3G-SDI
- Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
- 1310nm DFB laser and PIN photo-detector
- Hot-pluggable SFP footprint
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic functions available through the I2C interface
- +3.3V single power supply
- Low Power Consumption
- Commercial operating case temperature range: 0℃ to 70℃
- RoHS compliant and Lead-Free
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- HD Camera or Monitor System
- High-density digital video routers & switches

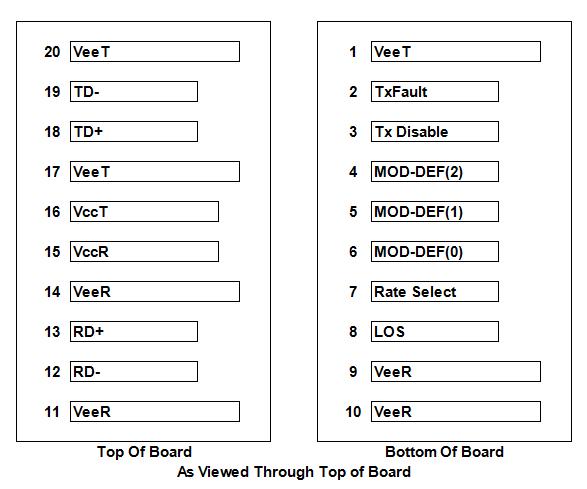

PIN Definition
3G SDI SFP Transceiver, 1310nm DFB+PIN, 40km Dual LC, MSA Pinout, SD/HD/3G SDI
