3Gb/S Single Mode BiDi SFP Module TX1550nm RX1310nm 10km Video Pathological Patterns Transceiver Module DDM MSA
3Gbps MSA SMPTE SFP BiDi TX1550nm/RX1310nm 10km Transmitter and Receiver Module for SD/HD/3G-SDI LC SMF DDM
Functional Specification
| Product Name | 3G SMPTE BiDi SFP | Part/Number | GTS-B5330-10DC |
| Bit Rate | 50Mbit/s - 2.97Gbit/s | MSA Pinout | Yes |
| Module-Type | Transmitter + Receiver | Temp. | Com. |
| Wavelength | TX1550nm/RX1310nm | Fiber Distance | 10km |
| Connector | Simplex LC | Fibre Type | SMF |
| LD Type | DFB BiDi | PD Type | PIN |
| Power Supply Voltage | 3.3V | Total Current (Typical) | 200mA |
| TX Power (dBm) | -5~0dBm | Sensitivity for SMPTE 424M 2.97 Gb/s | < -18dBm (Pathological) |
| Sensitivity for SMPTE 292M 1.485 Gb/s | < -20dBm (Pathological) | ||
| Extinction Ratio | >5.0dB | Power-budget | 12dB |
| Pathological Patterns | Support | DDM | Yes |
| Laser Safety | Class 1 | OEM/ODM | Supported |
| Protocols | SFP MSA | ||
| Application | SD/HD/3G SDI | ||
Description
Gigaopto’s GTS-B5330-10DC is 1 fiber Bidirectional SFP optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.
The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rate,a maximum distance of 10 km is achievable with 3Gbps pathological signals over a single-mode fiber (SMF) with simplex LC connector
It is with a 1550nm DFB laser transmitter. The receiver section uses an integrated 1310nm detector preamplifier mounted in an optical header and a limiting post-amplifier IC.
The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Note: This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.
Features
- SD/HD/3G-SDI SFP Transceiver
- SMPTE 297-2006 Compatible
- Hot-Pluggable SFP
- Bandwidth from 50 Mb/s to 2.97 Gb/s
- Optical Link up to 10km for 3G-SDI
- Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
- 1550nm Transmitter and 1310nm Receiver
- Hot-pluggable SFP footprint
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic functions available through the I2C interface
- +3.3V single power supply
- Low Power Consumption
- Commercial operating case temperature range: 0℃ to 70℃
- RoHS compliant and Lead-Free
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- HD Camera or Monitor System
- High-density digital video routers & switches

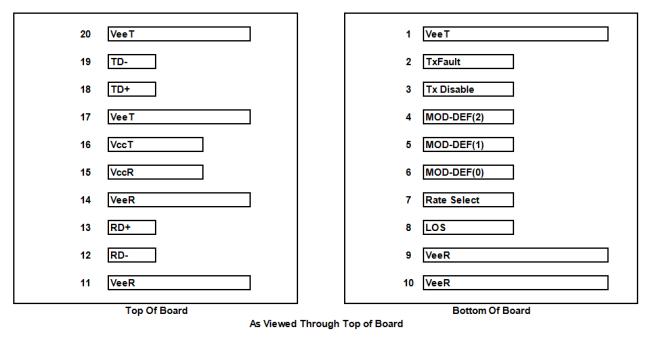

PIN Definition
