Non MSA 3G SDI SFP Tx 1310nm 10km Video Pathological Patterns Single Transmitter Module DDM For SD/HD/3G SDI
Non MSA HD-SDI SD-SDI 3G-SDI SFP Tx 1310nm 10km Video Pathological Patterns Single Transmitter Module DDM
Functional Specification
| Product Name | 3G SDI Single Transmitter | P/N(Part No.) | GTS-L1330-10DCTN |
| Bandwidth | 50Mb/s - 2.97Gb/s | Pin Assignment | Non-MSA |
| Module Type | Single TX | Temperature Range | 0 to 70°C (32 to 158°F) |
| Center Wavelength (TX) | 1310nm | Cable Distance | 10km |
| Connector type | Simplex LC | Fiber Type | Single-mode fiber |
| Transmitter Type | DFB Laser | Receiver Type | N/A |
| Power Supply Voltage | 3.3V | Current (Max) | 350mA |
| Average Output Power | -5~0dBm | Extinction Ratio | >5.0dB |
| Pathological Patterns | Support as default | DDM | Supported |
| OEM/ODM | Supported | Weight | 0.025kg |
| Applications | SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces | ||
| HDTV/SDTV Service Interfaces | |||
Description
Gigaopto’s GTS-L1330-10DCTN 3G SDI Video SFP TX Transmitter Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector, It supports the data rates from 50Mb/s to 2.97Gb/s,This transmitter is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
Features
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- SMPTE 297-2006 Compatible
- Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 10km single-mode fiber
- 1310nm DFB laser
- Metal enclosure for Lower EMI
- Non-MSA Pinout
- Digital Diagnostic Monitoring
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- Remote digital display or security surveillance systems
- Professional video broadcast
- Digital cinema system

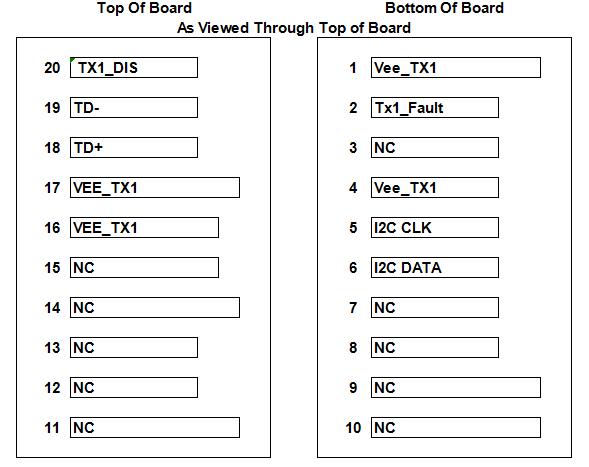

PIN Definition
Note: Society of Motion Picture and Television Engineers short for SMPTE has standards for handling high definition video signals with pathological pattern. SMPTE's standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI). "SMPTE 424M" is a standard which expands upon SMPTE 259M, SMPTE 344M, and SMPTE 292M allowing for bit-rates of 2.970 Gbit/s and 2.970/1.001 Gbit/s over a single-fiber cable. These bit-rates are sufficient for 1080p video at 50 or 60 frames per second.
