MSA 3Gbps Video SFP Transmitter 1550nm 40km For SD HD 3G SDI
MSA 3G-SDI SFP Tx Only 1550nm 40km Video Pathological Patterns Single Transmitter Module DDM
Functional Specification
| Product Name | 3G Video SFP Single-TX | P/N | GTS-L1530-40DCT |
| Bit Rata (Gb/s) | Up to 2.97G | Pin Assignment | MSA Pin-out |
| Module Type | Single Transmitter | Operating Temp. | 0 to 70°C |
| Wavelength (TX) | 1550nm | Fiber Reach | 40km |
| Optical Connector | LC | Fiber Type | Single-mode fiber |
| Transmitter | DFB Laser | Receiver | N/A |
| Power Supply Voltage | 3.3V | Current (Max) | 350mA |
| Launched Power | -2~+3dBm | ER | >5.0dB |
| Pathological Patterns | Support as default | DDM | With |
| OEM/ODM | Yes | Protocols | SFP MSA |
| Applications | SD/HD/3G SDI | ||
Description
Gigaopto’s GTS-L1530-40DCT 3G Video SFP Single-TX Module is designed for single-channel video transmission applications over 40km transmission on SMF via 1550nm Wavelength with a simplex LC connector. It supports the data rates from 50Mb/s to 2.97Gb/s,This transmitter is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
Features
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- SMPTE 297-2006 Compatible
- Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 40km SMF
- 1550nm DFB laser
- Metal enclosure for Lower EMI
- Digital Diagnostic Monitoring
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- Remote digital display or security surveillance systems
- Professional video broadcast
- Digital cinema system

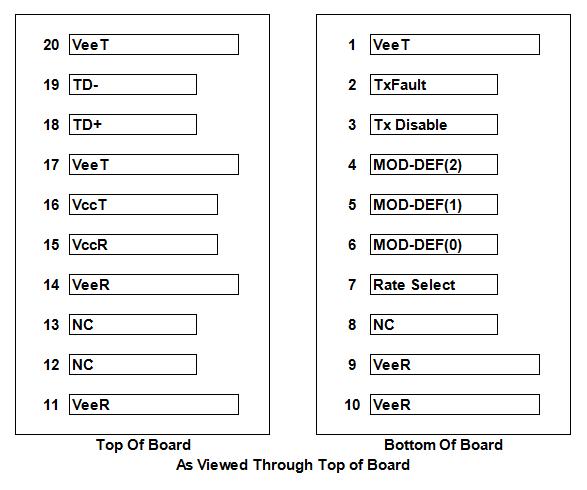

PIN Definition
Note: Society of Motion Picture and Television Engineers short for SMPTE has standards for handling high definition video signals with pathological pattern. SMPTE's standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI).
SMPTE 297-2006: This standard defines the fiber optic interface for the transmission and reception of SDI signals at various data rates: 3G ~ 12G
SMPTE 259M: 143 through 360 Mb/s
SMPTE 344M: 540 Mb/s
SMPTE 292: 1.485 and 1.485/1.001 Gb/s
SMPTE 424M: 2.97 and 2.97/1.001 Gb/s
These bit-rates are sufficient for 1080p video at 50 or 60 frames per second.
