SD-SDI/HD-SDI/3G-SDI Dual Transmitters 1550nm 40km Dual Fiber Module Non MSA Pinout
3Gbps 1550nm dual transmitters digital video/audio dual fiber sfp module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 40km LC DDM
Functional Specification
| Product Name | 3G SFP Dual Optical Transmitters | P/N | GTS-L5530-40DCTT |
| Bandwidth (Gbps) | 50M - 2.97G | Pin Assignment | Non-MSA |
| Module Category | SFP 2TX | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Center Wavelength (TX) | TX1_1550nm/TX2_1550nm | Max Cable Link | 40km |
| Optical Connector | Duplex LC receptacle | Fiber Type | SMF |
| Transmitter Type | DFB | Receiver Component | N/A |
| Power Supply Voltage | 3.3V | Total Current (Max) | 500mA |
| Tx Power | -2~+2 dBm | Extinction Ratio | >5dB |
| Digital Diagnostic Management | Yes | Video Pathological Patterns | Support as default |
| OEM/ODM | Supported | Warranty | 3-year |
| Protocols | SFP MSA ,SFF-8472,RoHS,CE,FCC | ||
| Application | SD/HD/3G SDI | ||
Description
The GTS-L5530-40DCTT is a dual channel optical single mode transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006.
It supports from 50Mbps to 3Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.
Each transmitter can transmit signal from 50Mbps to 3Gbps transmission reach up to 40km with 3Gbps pathological signals.
It is with the SFP 20-pin connector to allow hot plug capability, full compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
It is suitable for high-definition digital broadcasting applications.
Features
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- SMPTE 297-2006 Compatible
- Robust error free transmission of signals from 50Mb/s to 2.97Gb/s & link up to 40km on SMF
- 1550nm Dual Transmitters with Duplex LC Receptacle
- Two Independent TTL Laser Disable Input
- Non MSA Pinout
- Metal enclosure for Lower EMI
- Digital Diagnostic functions available through the I2C interface
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- Remote digital display or security surveillance systems
- Professional video broadcast
- Digital cinema system

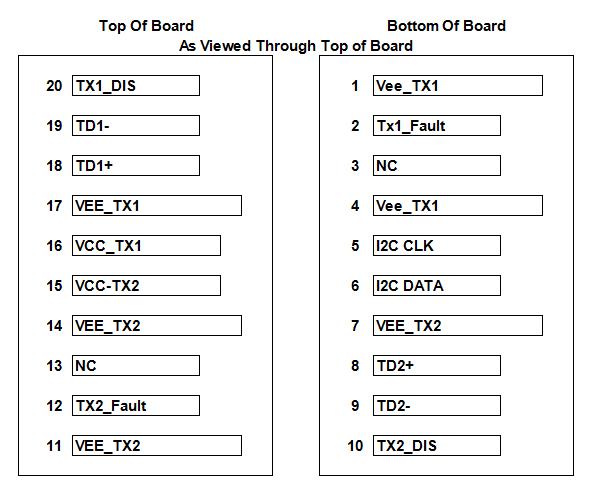

PIN Definition
