SFP Dual Receivers 1310nm 10km Video Pathological Patterns Module for SD-SDI HD-SDI and 3G-SDI Non MSA
3Gbps dual receivers digital video/audio dual fiber SFP module Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM
Functional Specification
| Product Name | 3G-SDI SFP Dual-Receiver | Bandwidth (Gbps) | 50Mbit/s - 2.97Gbit/s |
| Form Factor | SFP 2-port Receivers | Pin Assignment | Non-MSA Pinout |
| Video Pathological Patterns | Support as default | Temperature | Operating:0 to 70°C (32 to 158°F) |
| Center Wavelength (RX) | 1310nm | Fiber Transmission | 10km |
| Connector Type | Dual LC Receptacle | Fiber Type | SMF |
| Transmitter Type | N/A | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Supply Current | 150mA (typical) |
| Protocols | SFP MSA | Saturation (Overload) | > 0dBm |
| Rx Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Rx Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| Digital Diagnostic | With | Warranty | 3 years |
| OEM/ODM | Support | MTBF | 1,000,000Hours |
| Application |
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces HDTV/SDTV Service Interfaces |
||
Description
Gigaopto's GTS-LXX30-10DCRR 3G-SDI SFP Dual Receivers Module is a dual channel optical single mode receiver module designed to receive optical serial digital signals as defined in SMPTE 297-2006. It supports from 50 Mbps to 3 Gbps and is specifically designed for received the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns.
Each receiver consists of a PIN photodiode integrated with a trans-impedance preamplifier(TIA) and can receive signal from 50 Mbps to 3 Gbps, a max link reach is up to 10km with 3Gbps pathological signals.
The receiver module is full compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Features
- Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- SMPTE 297-2006 Compatible
- Robust error free transmission of signals from 50Mb/s to 3Gb/s & up to 10km SMF
- Dual Pin Photodetectors 1310nm wavelength with duplex LC receptacle
- Non MSA Pinout
- Metal enclosure for Lower EMI
- Digital Diagnostic functions available through the I2C interface
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- Remote digital display or security surveillance systems
- Professional video broadcast
- Digital cinema system

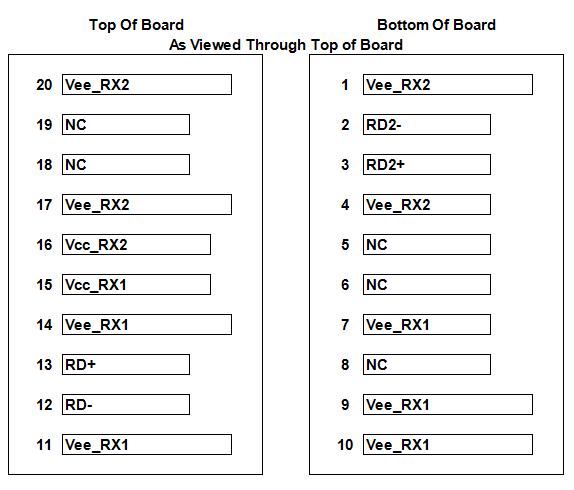

PIN Definition
