3G-SDI SFP Bidirectional Dual Receivers 1310nm/1550nm 10km Video Pathological Patterns Module Non MSA
3Gbps Bi-directional 1310nm/1550nm dual receivers digital video/audio sfp module Supports Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI Non MSA Pinout 10km LC DDM
Functional Specification
| Product Name | 3G-SDI BiDi Dual Receivers | Bandwidth (Gbps) | 50 Mbit/s - 2.97 Gbit/s |
| Form Factor | SFP 2RX in 1-Fiber | Pin Assignment | Non-MSA Pinout |
| Video Pathological Patterns | Support | Temperature | Operating:0 to 70°C (32 to 158°F) |
| Center Wavelength (RX) | 1310nm -RX1/1550nm-RX2 | Transmission | 10km |
| Interface | Simplex LC Receptacle | Fiber Type | SMF |
| Transmitter Part | N/A | Receivers Type | PIN ( 2*PIN in BOSA) |
| Power Supply Voltage | 3.3V | Supply Current (Max) | 200mA |
| Protocols | SFP MSA | Receiver Overload | > 0dBm |
| Receiver Sensitivity ( PRBS ) | SD-SDI:<-20dBm; HD-SDI:<-20dBm; 3G-SDI:<-20dBm | ||
| Receiver Sensitivity(Pathological) | SD-SDI:<-16dBm; HD-SDI:<-15dBm; 3G-SDI:<-14dBm | ||
| Digital Diagnostic | Support | Warranty | 3-year |
| OEM/ODM | Support | MTBF | 1,000,000Hours |
| Application | SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces | ||
| HDTV/SDTV Service Interfaces | |||
Link Distance
| Part Number | SDI | Data Rate | Max Link Distance |
| GTS-B3530-10DCRR | 3G-SDI | 2.97Gbps | 10km |
| HD-SDI | 1.485Gbps | 21km | |
| SD-SDI | 270Mbps | 30km |
Description
The GTS-B3530-10DCRR is a 1-fibre Bi-Directional dual channel receiver module is designed to transmit optical serial digital signals as defined in SMPTE 297-2006. It supports the data rates from 50Mb/s to 2.97Gb/s. This dual receiver module is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 1310 nm and 1550 nm laser receivers. Each receiver can receive signal from 50 Mb/s to 2.97Gb/s with up to 30km of single-mode fiber when using the GTS-B3530-10DCTT as the transmitter. A maximum distance of 10km is achievable with 3Gb/s pathological signals.
Features
- SD/HD/3G-SDI SFP Transceiver
- SMPTE 297-2006 Compatible
- 1-Fibre BIDI Dual Receivers with Simplex LC Receptacle
- Bandwidth from 50 Mb/s to 2.97 Gb/s
- Optical Link up to 10km for 3G-SDI
- Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
- Pin Receiver 1310nm-RX_1 and 1550nm-RX_2
- Hot-pluggable SFP footprint
- Digital Diagnostic functions available through the I2C interface
- +3.3V single power supply
- Low Power Consumption
- Commercial operating case temperature range: 0℃ to 70℃
- RoHS compliant and Lead-Free
Application
- 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
- 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
- HD Camera or Monitor System
- High-density digital video routers & switches

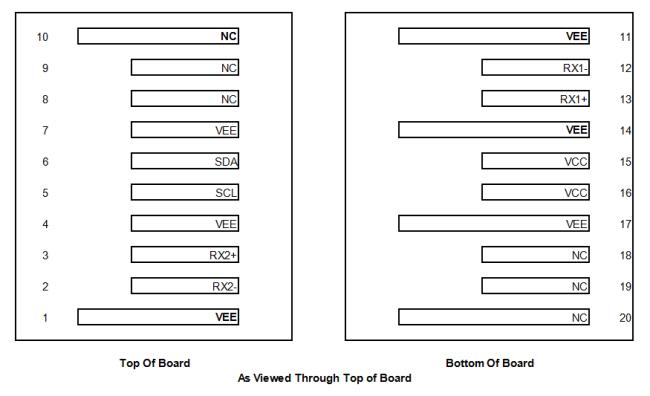

PIN Definition
