6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA
6G SDI SMPTE SFP BIDI LC TX1310nm RX1550nm 10km Transceiver Modules MSA
Products Description
Gigaopto’s GTS-B3560-10DC is one fiber Bidirectional SFP optical transceiver module designed for video transmission applications.
The transceiver is designed to transmit/receive data rates from 50Mbps to 5.94Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rate,a maximum distance of 10 km is achievable with 6Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector.
The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Functional Specification
| Product | 6G Video BiDi SFP | Part Number | GTS-B3560-10DC |
| Max Data Rate | 5.94Gb/s | MSA Pinout | Yes |
| Module-Type | Transmitter + Receiver | Operating Temp. | 0°C to 70°C /-40°C to +85°C |
| Center Wavelength | 1310nm-TX/1550nm-RX | Fiber Transmission | 10km |
| Interface /Polish | Simplex LC UPC | Fiber Type | SMF G.652 |
| Transmitter Type | DFB BiDi | Receiver Type | PIN |
| Power Supply Voltage | 3.3V | Total Current (Typical) | 200mA |
| TX Optical Power | -6~+1dBm | Receive Sensitivity | < -14dB (PRBS 223-1, BER=1E-12 ) |
| Extinction Ratio | >7.0dB | Digital Diagnostics | Yes |
| Video Pathological Patterns | Support as default | Weight | 0.025kg |
| Application | SD/HD/3G/6G SDI | ||
Features
- Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Operating data rate from 50Mbps to 5.94Gbps
- Metal house, low EMI
- 1310nm-TX DFB Transmitter and 1550nm-RX PIN photo-detector
- Fiber distance up to 10km with LC duplex connector
- Single 3.3V Power supply
- Hot Pluggable, low power consumption
- Compliant with SFP MSA and SFF-8472
- Real time digital diagnostic monitoring through the I2C interface
- Operating case temperature:
0°C to +70°C
-40°C to +85°C
- RoHS-6 compliant and Lead-Free
Applications
- Camera, Video, Security Monitoring, etc
- 4K /HDTV/SDTV Service Interfaces

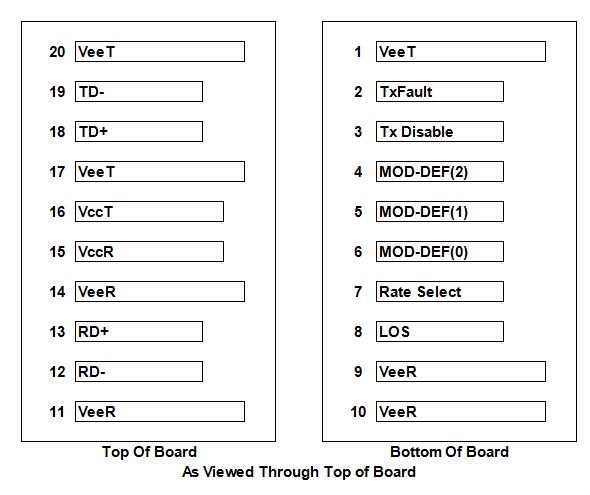

PIN Definition
