6G SDI Video TX1550nm RX1310nm 10km BIDI Transceiver Module MSA
6G SDI SMPTE SFP BIDI LC TX1550nm RX1310nm 10km Transceiver Modules MSA
Products Description
Gigaopto’s GTS-B5360-10DC is one fiber Bidirectional SFP optical transceiver module designed for video transmission applications.
The transceiver is designed to transmit/receive data rates from 50Mbps to 5.94Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rate,a maximum distance of 10 km is achievable with 6Gbps pathological signals over a single-mode fiber (SMF) with a simplex LC connector
The transceiver consists of three sections: a 1310nm DFB laser transmitter, a 1550nm PIN photodiode integrated with a trans-impedance pre-amplifier (TIA) , Reclocker ,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Functional Specification
| Product | 6G SDI BIDI Transceiver | Part Number | GTS-B5360-10DC |
| Max Bit Rate | 5.94Gb/s | MSA Pinout | Yes |
| Module-Type | Transceiver | Operating Temperature | 0°C to 70°C /-40°C to +85°C |
| Center Wavelength | TX1310nm /RX1550nm | Max Distance | 10km |
| Connector /Polish | Simplex LC UPC | Media | Single mode fiber |
| Transmitter Component | DFB BiDi | Receiver Component | PIN |
| Power Supply Voltage | 3.3V | Total Current (Typical) | 200mA |
| TX Output Power | -6~+1dBm | RX Sensitivity | < -14dB |
| Extinction Ratio | >7.0dB | Monitoring | Yes |
| Video Pathological Patterns Support | default | Weight | 25gram |
| Application | 4K Video (6G Ultra-SDI) Optical Signal Transmission,SMPTE 424M/297M (1080p-2.97Gbps),SMPTE 292M/297M(HDTV–1.485Gbps),SMPTE 259M/297M(SDTV–270Mbps),Up to 6Gbps Optical Link | ||
Features
- Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Operating data rate from 50Mbps to 5.94Gbps
- Metal enclosure, low EMI
- 1550nm-TX DFB Transmitter and 1310nm-RX PIN photo-detector
- Fiber distance up to 10km with LC duplex connector
- Single 3.3V Power supply
- Hot Pluggable, low power consumption
- Compliant with SFP MSA and SFF-8472
- Real time digital diagnostic monitoring through the I2C interface
- Operating case temperature:
0°C to +70°C
-40°C to +85°C
- RoHS-6 compliant and Lead-Free
Applications
- Camera, Video, Security Monitoring, etc
- 4K /HDTV/SDTV Service Interfaces

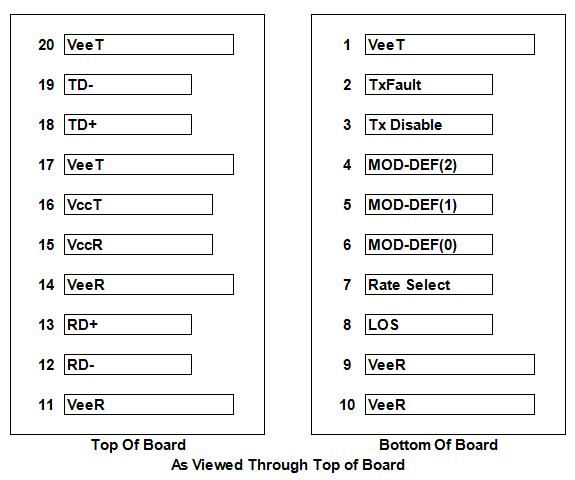

PIN Definition
