6G SDI SMPTE SFP 1310nm 10km SMF LC Single Transmitter Modules MSA
6G SDI Single Transmitter 1310nm 10km SMF LC DOM MSA
Description
This 6G Transmitter Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector, It supports the data rates from 50Mb/s to 5.94Gb/s,They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.
This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.
Functional Specification
| Product | 6G SDI Single Transmitter | Part Number | GTS-L1360-10DCT |
| Bandwidth | 50Mb/s - 5.94Gb/s | MSA/Non-MSA | MSA |
| Module-Type | Single Transmitter | Temperature Range | 0 to 70°C / -20 to 85°C |
| Center Wavelength | 1310nm | Cable Link Length | 10km |
| Connector type | LC Simplex | Cable Type | SMF G.652 |
| Transmitter Type | DFB | Receiver Part | N/A |
| Power Supply Voltage | 3.3V | Total Current (Max) | 400mA |
| TX Optical Power | -7~0dBm | Extinction Ratio | >5.0dB |
| Pathological Patterns | Support as default | Digital Diagnostic | Support as default |
| OEM/ODM | Yes | Protocols | SFP MSA |
| Applications | SD/HD/3G/6G SDI | ||
Features
- Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Operating data rate from 50Mbps to 5.94Gbps
- Metal enclosure, low EMI
- 1310nm DFB laser, without photodiode
- Fiber distance up to 10km
- Single 3.3V Power supply
- Simplex LC Connector Interface
- Hot Pluggable
- Compliant with SFP MSA and SFF-8472
- Real time digital diagnostic monitoring through the I2C interface
- Operating case temperature:
0°C to +70°C
-20°C to +85°C
- RoHS-6 compliant and Lead-Free
Applications
- Camera, Video, Security Monitoring, etc
- 4K /HDTV/SDTV Service Interfaces

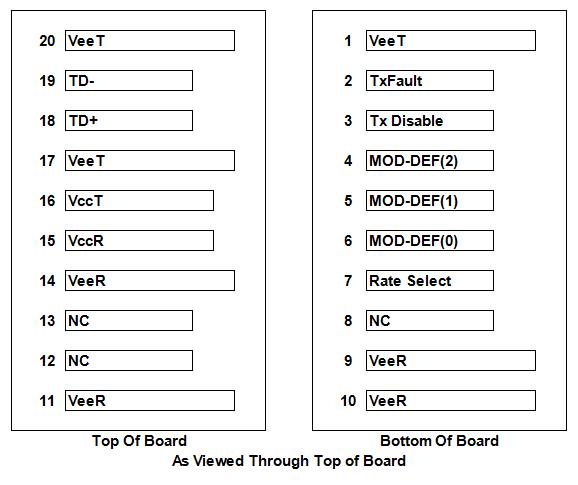

PIN Definition
