Consistent Quality Hot Pepper Chili Drying Solution Automated Chili Spice Dryer Machine

Price Negotiable
Price: $19900-39900 Sets
MOQ: 1
Delivery Time: 10 Work Days
Brand: ShouKe
Product Description

Consistent Quality Hot Pepper Chili Drying Solution Automated Chili Spice Dryer Machine



DESCRIPTION:

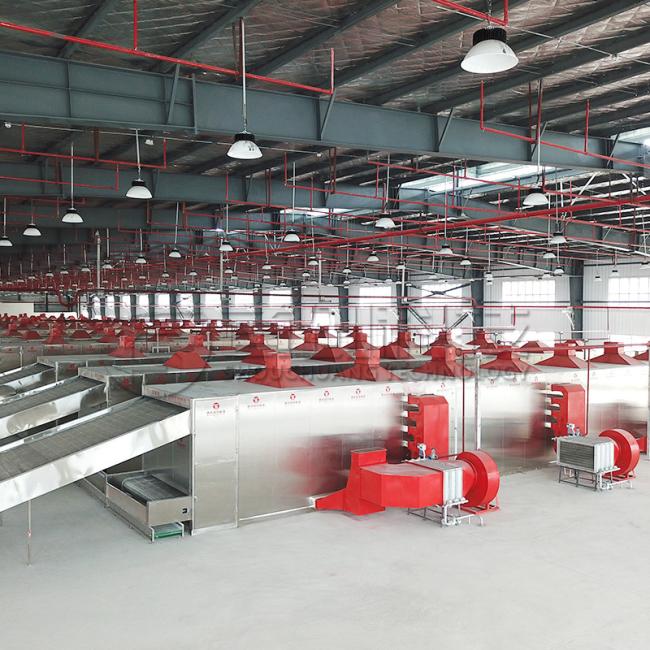

Embodying the pinnacle of agricultural innovation, the SHOUCHUANG air energy heat pump chili dryer redefines the drying process through its mastery of the inverse Carnot cycle principle. Fueled by electricity, it orchestrates a symphony of energy conversion, yielding an unprecedented 3 to 5-fold amplification in thermal output. By tapping into the ambient heat of the atmosphere using state-of-the-art refrigeration technology, it transforms ordinary air into a concentrated blast of high-temperature heat, facilitating the meticulous drying of chili peppers with unparalleled efficiency and environmental responsibility.

Basic principle: The material passes through the paving device of the feeding port, and the material is evenly spread on the conveyor belt, and the conveyor belt sends the material into the machine to move in an "S" shape from top to bottom. During the movement, the material is in contact with the hot air. Dry moisture is removed through the dehumidification system to achieve the purpose of drying



SPECIFICATIONS:



Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw



ADVANTAGES:



Shouchuang Advantages Of Chilli Dryer Machine:
1.According to the characteristics of different chili varieties, research and design of a unique drying system, structure design using special concave and convex combined with embedded door effectively reduces heat loss
2.air supply mode using chilli special delivery technology, shortens the drying cycle, to maximize the retention of the effective ingredients of the material, to ensure that chilli dries color, fragrance, good taste.
3.Adjustable speed--Drying temperature and moisture can be adjusted by the control panel by adjusting the mesh belt's running speed and air rate.
4.Energy saving only small electricity consumption, at least saving 50% running cost.
5.Dryer machines can use coal, wood, gas, diesel, electricity, can meet different customer requirements.





COMPANY PROFILE



Sichuan Nanchong Shouchuang Technology Development Co., Ltd. was established in 2002. Its predecessor was the Nanchong Drying Equipment Research Institute, which was established in 1972. In 1976, it introduced Japan's "Dahe Sanguang" drying technology and developed the first automatic hot air circulation dryer in China. So far, our factory has accumulated 6000+ domestic and foreign customers' drying cases and obtained 60+ national patents and copyrights.



PATENT CERTIFICATE:



4/8/12 Trolleys Industrial Heat Pump Oven Dryer Machine Fruit Vegtable Dehydrator 2





SHIPMENT AND PACKGAGE:



Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

4/8/12 Trolleys Industrial Heat Pump Oven Dryer Machine Fruit Vegtable Dehydrator 3
