600 To 1000KG Sausage Shrimp Meat Drying Machine Wearproof 26KW
26Kw Commercial Shrimp Sausage Food Cabinet Dryer Meat Integrated Drying Room
The yam dryer adopts a high-temperature-resistant circulating fan, and through forced hot air to circulate in the box, the heat transfer is enhanced, the water evaporation rate is increased, and the drying time is shortened. The whole box adopts a fully enclosed structure, the hot air is circulated inside, and the hot and humid air is reasonably discharged and fresh air is supplied. The oven is equipped with an automatic temperature control system with precise temperature control.
THE FOOD CABINET DRYE DETAILS
THE CABINET DRYER PARAMENTER
| Model | 5HF4 | 5HF6 | 5HF8 | 5HF10 | 5HF12 |
| Trolley | 4 | 6 | 8 | 10 | 12 |
| Tray Total | 60 trays | 90 trays | 120 trays | 150 trays | 180 trays |
| Tray Size(mm) | 1400*900 | 1400*900 | 1400*900 | 1400*900 | 1400*900 |
| Tray Capacity (Kg) | 12-20 | 12-20 | 12-20 | 12-20 | 12-20 |
| Tray Material | Plastic, Stainless Steel 304,304L,316 | ||||
| Drying Capacity (kg/T) | 600-1000kg | 1000-2000kg | 1500-2500kg | 1800-3000kg | 2000-4000kg |
| Chamber Dimension (mm) | 5000*2300*2000 | 6600*2300*2000 | 8000*2300*2000 | 7000*3300*2000 | 8000*3300*2000 |
| Total Power (kw) | 26kw | 40kw | 48kw | 51.5kw | 57kw |

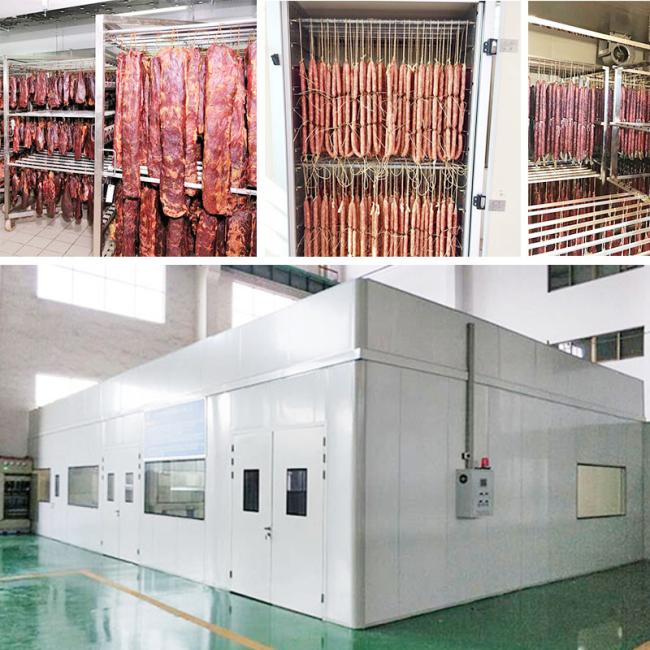

THE MATERIALS APPLICATION
THE COMPANY PROFILE
THE PATENT CERTIFICATE
Founded in 1972, it has won many invention patents, software works and scientific and technological progress awards.
6 *invention patents;
1 *provincial patent award;
54 *national patents and soft works;
13 *scientific and technological progress awards
THE SHIPMENT AND PACKGAGE
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
