1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)
1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)
Product Description

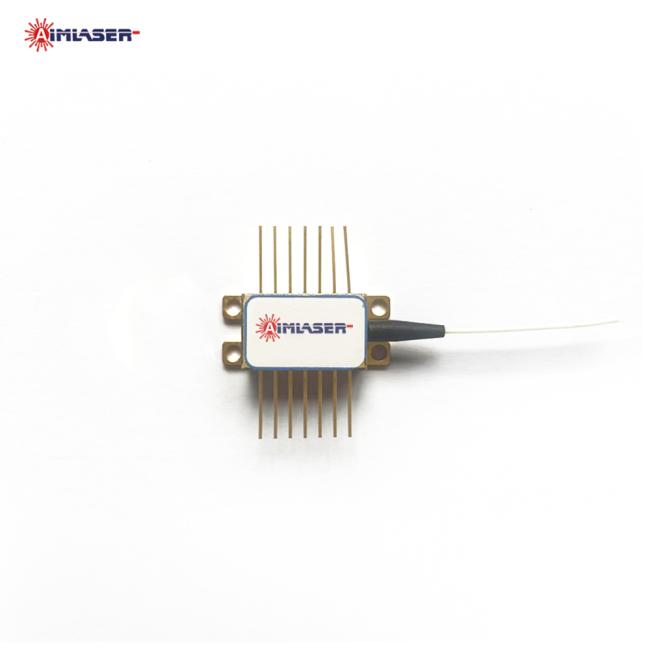

The AMLD series laser diodes cover a wide wavelength range, including 1270 nm, 1310 nm, 1550 nm, and 1610 nm, for various applications. The laser diodes are fabricated in a hermetically sealed 14-pin butterfly package.
Each laser diode integrates a thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator, ensuring high performance, excellent wavelength stability, and long-term reliability.
An optional laser driver and temperature controller is available, featuring an RS-232 interface and a customer-oriented PCB design. Dedicated control software (included) allows external monitoring and adjustment of the laser drive current and operating temperature, providing stable constant-current output and high-precision temperature control. The driver is primarily used for laser production and testing applications.
![1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)]()
![1310nm 1550nm DFB Butterfly Package Fiber-Coupled Laser Diode Module with TEC and Optical Isolator (Optional Driver)]()
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Model Number |
DFB Butterfly Package Fiber-Coupled Laser Diode Module |
|
Wavelength |
1310nm, 1550nm |
|
Output Power |
10mW |
|
Laser Mode |
CW |
|
Spectral Width(FWHM) |
3MHz |
|
Wavelength Shift |
0.1nm |
|
Operating Voltage |
5.0V/3A |
|
Optical Isolation |
≥30dB |
|
Relative Intensity Noise |
≤-140dB/Hz |
|
Fiber Type |
SMF-28e |
|
Working Temperature |
-20℃ to 70℃ |
|

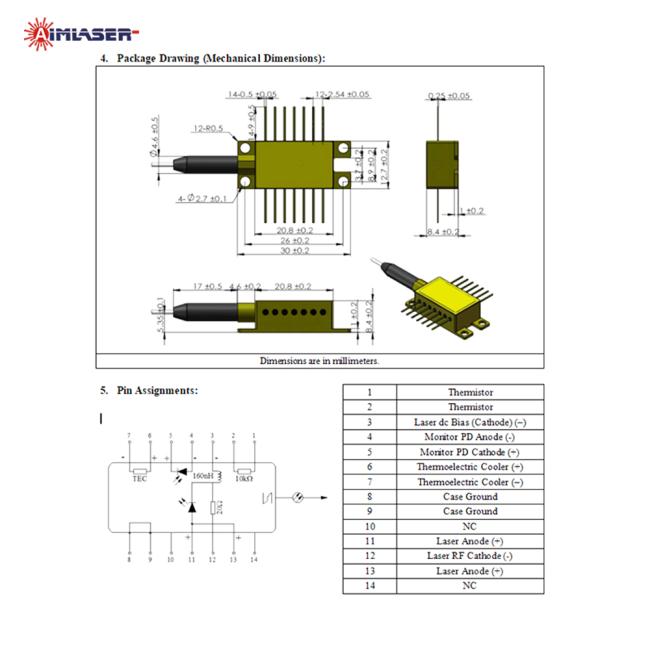

Dimensions |
30x12mm |
|
Fiber Length |
1m |
|
Numerical Aperture |
0.13 N.A. |
|
Connector |
FC/PC, FC/APC, SMA905 |
|
Life Time |
10,000Hrs |
Features
● High output power (≥10 mW) with narrow linewidth DFB laser
● Built-in TEC and thermistor for stable wavelength control
● Integrated optical isolator to prevent back-reflection
● Internal monitor photodiode for power feedback
● SMF-28e fiber pigtail with FC/APC connector for plug-and-play use
Applications
The 1310 nm / 1550 nm DFB Butterfly Package Fiber-Coupled Laser Diode Modules with TEC and Optical Isolator (Optional Driver) are used in:
● Optical Communication: Ideal for DWDM/CWDM systems, long-haul and metro fiber networks, and high-speed data transmission.
● Fiber Sensing: Used in FBG temperature and strain sensors, distributed fiber sensing (DTS/DAS), and structural health monitoring.
● Gas Detection / Spectroscopy: Suitable for tunable diode laser absorption spectroscopy (TDLAS) for precise gas concentration measurements and industrial process monitoring.
● Scientific Research: Applied in interferometry, spectroscopy, and laboratory laser experiments requiring narrow linewidth and stable output.
● Fiber Amplifier Pumping: For EDFAs and SOAs in optical signal amplification and testing applications.
