45 Degree Bevel Woodworking Edge Bander Machine 380v With Trimming

Price Negotiable

Price: negotiate

MOQ: 1sets

Delivery Time: 5-8 work days

Brand: ZDS

Product Description

45 Degree Bevel Woodworking Edge Bander Machine Edge Banding Machines with trimming

The machine has a 45-degree sawing unit, which crushes and cuts the beveled edge outside the reserved straight edge; adopts the principle of one-time straight edge and beveled edge coating at the same time to achieve a perfect glue coating effect, and assembles two sets of pressure wheels to match the beveled edge and the beveled edge. Straight edge for pressing; Use edge band slotting to slot and form the parts that need to be combined to achieve clear edge angles on the edge banding surface; It has a hot air auxiliary unit, which can soften the edge band and heat the rubber surface twice to make the effect more perfect; The machine also has the functions of end cutting, fine trimming, scraping and polishing, which can achieve perfect beveled edge banding effect at one time. It mainly produces panel-type furniture edge-banding workpieces. It is suitable for melamine boards, medium-density boards, and plywood (plywood). Various types of edge banding can be used, including: PVC/ABS/acrylic (straight edge sealing) and other edge banding materials.

Name	45 Degree Bevel Woodworking Edge Bander Machine Edge Banding Machines with trimming
Edge speed	0-12m/min	Edge banding sheet thickness	18-50mm
Voltage	380v	Power	8.9kw
Working pressure	0.5-0.7Mpa	Glue pot capacity	4000ml
Bevel Angle	30°-90°	Edge motor	0.12kw
Glue pot heating	2kw	Oven lamp heating	2kw*2
Slotting motor	65w	Trimming motor	2.2kw*2
Milling motor	2.2kw	Polishing Motor	0.37kw*2
Size	33206501180mm	Weight	450kg

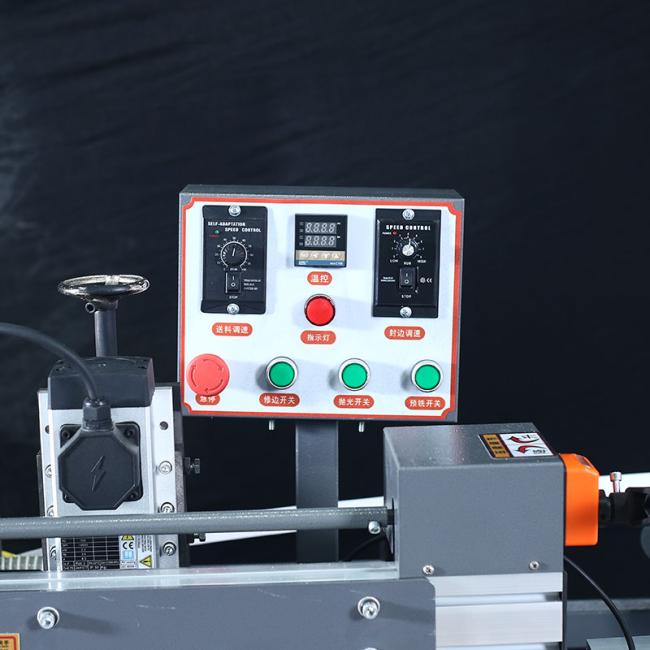

PLC control, panel operation, easy to learn.

One-piece aluminum alloy lift and pressure beam, stable and durable.

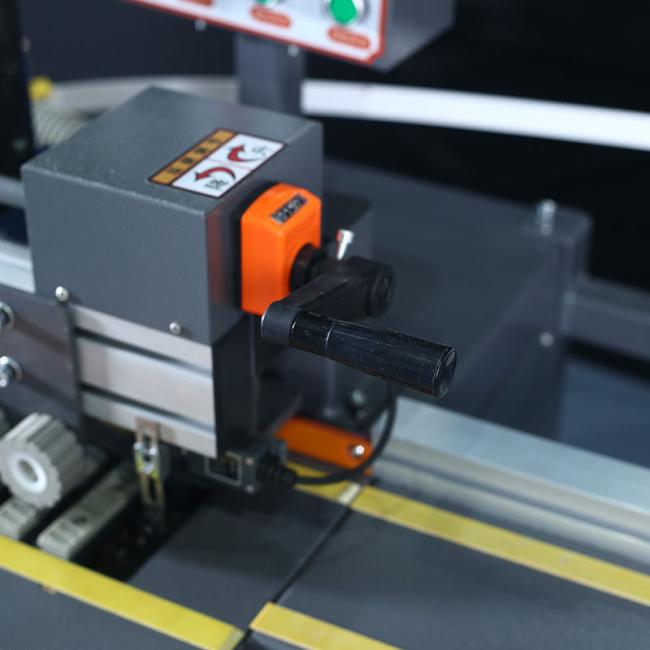

Pressure beam height adjustment device, digital display, suitable for plates of different thickness.

Large-capacity glue pot assembly reduces the number of glue additions.

The edge banding is pre-grooved for better results.

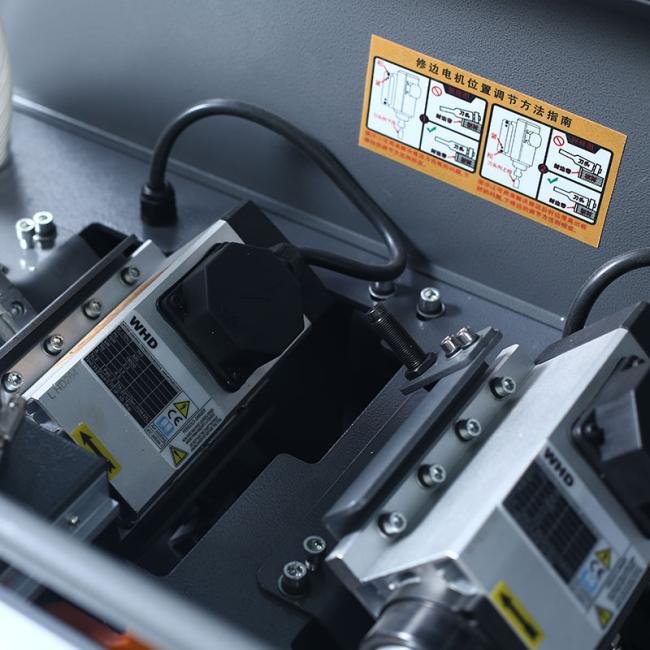

Two high-speed trimming motors, matched with 4-edged alloy cutter heads, form arc edges.

Scope of application:
It can be used for edge banding of various materials such as wood-based panels, MDF, particle boards, fiberboards, solid wood boards, particle boards, melamine boards, PVC boards, etc.
