Pneumatic flush edge banding machine automatic high speed for straight edge banding

Main functions: gluing, tape cutting, trimming, head-to-head alignment, tail-to-end alignment, scraping, polishing, vacuuming

Main function introduction
♦ Fully automatic and more convenient, automatic feeding conveyor belt, easy to deal with the troubles of manual push plate, using conveyor belt principle and auxiliary frame to perfectly match the pressing plate, making it more stable and smoother edge sealing, self-propelled design makes the plate double-sided The glue effect is beautiful and natural.
♦ Double speed governors, the speed of edge banding can be adjusted, and the speed of the feeding belt can be adjusted according to your own proficiency.
♦ Intelligent temperature control thermostat, digital display temperature value, according to the set temperature, the machine will automatically heat to the set temperature, energy saving and safety, circuit protection
♦ Independent switch design, feeding, edge sealing, trimming, polishing and vacuuming are all independent switches, easy to operate and easy to understand, more secure
♦ Double-sided gluing device, automatic tracking of the board, no glue breakage and glue leakage, uniform and stable gluing, and firmer pasting
♦ Strong power, low noise, pure copper core motor, high power and low energy consumption, stable operation and longer life
♦ large-capacity glue pots, the amount of glue can be adjusted at will
♦ Pneumatic control of the head device, cutting is accurate and fast, eliminating the need for manual trimming in the later stage, and improving efficiency

details

Button-type control panel, simple and intuitive operation control, all functions can be started and stopped with one key, speed is adjustable, temperature is digitally displayed, and the text logo can be changed according to needs.

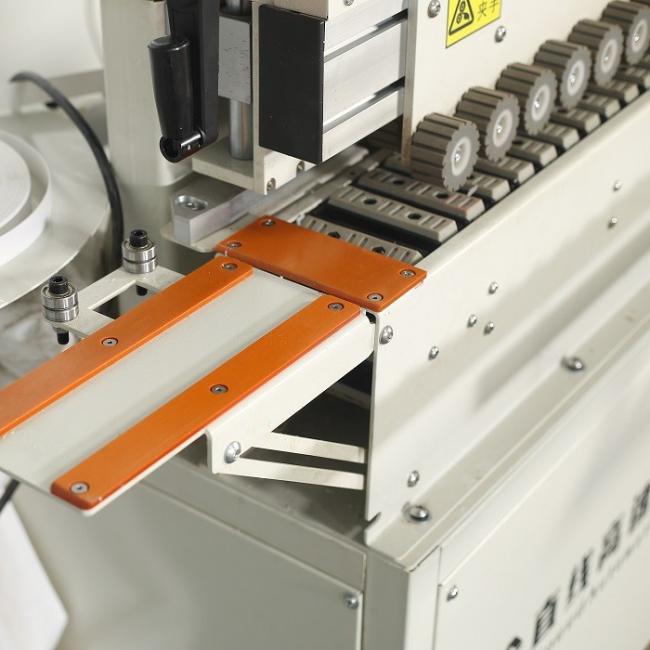

The automatic feeding conveyor belt can easily deal with the troubles of manual push plates. It adopts the principle of conveyor belt and auxiliary frame to perfectly cooperate with the pressing plate, making it more stable and sealing the edges more smoothly.

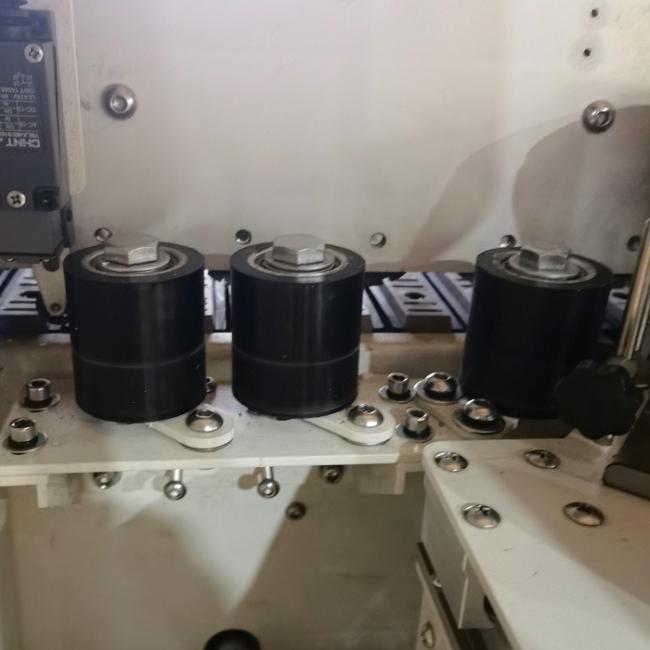

The gluing and pressing belt device is heated and glued by the glue pot, and the double-sided gluing process is used to apply glue, so that the plate and the edge band are evenly glued, and the edge band and the plate are pressed by the pressing wheel, and the adhesion is firm.

The front and rear alignment cutting device is composed of front flush and rear flush, controlled by solenoid valve, and has the function of flush mounting plate protection. It is cut by a special saw blade and has better stability.

Up and down polishing, driven by dual motors, use cotton polishing wheel to clean the processed plate, remove excess glue stains, and make the edge sealing end surface smoother and tidy by polishing
