FA806 Stainless Steel Alloy Steel Column Weighing Module 10t-100t For Hopper Bin Reactor Batching
Fibos FA806 10t-100t Stainless Steel Alloy Steel Column Weighing Module Hopper/Bin/Reactor Batching Weighing Module
1. Descriptions
FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.
2. Features and Uses
1. Large capacity, small dead weight
2. Self-supported safety support block mark for over-planting protection
3. Available with the corresponding module with 4-20mA analog output
4. Stainless steel laser welded sealed sensor, protection class IP68, can be used in various harsh environments
5. Easy and fast installation
6. Suitable for batching and weighing control of large tonnage tanks in harsh environments
7. Explosion-proof grade: Ex ib IIC T4
3. Specification
| Name | load cell kit |
| Rated Load | 10, 20, 30, 40, 50t |
| Rated Output | 2.0±0.0050mV/V |
| Safe overload | 150%R.C. |
| Ultimate overload | 300%R.C. |
| Protection class | IP68 |

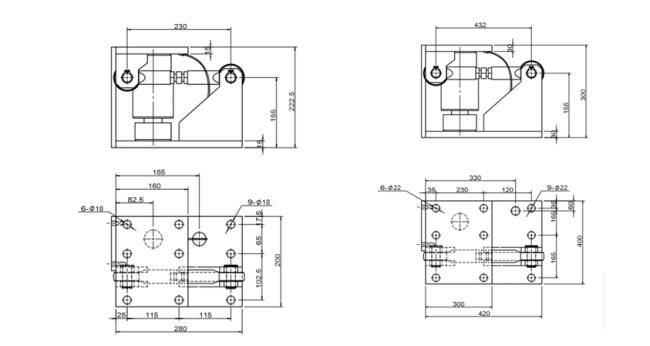

3. Dimensional drawing

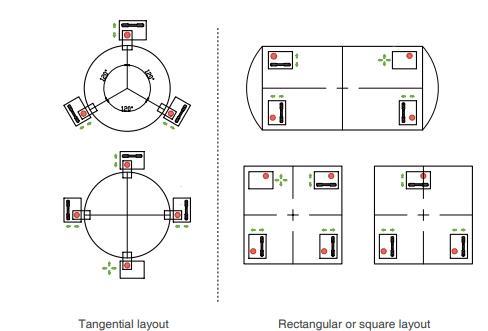

4. Installation layout

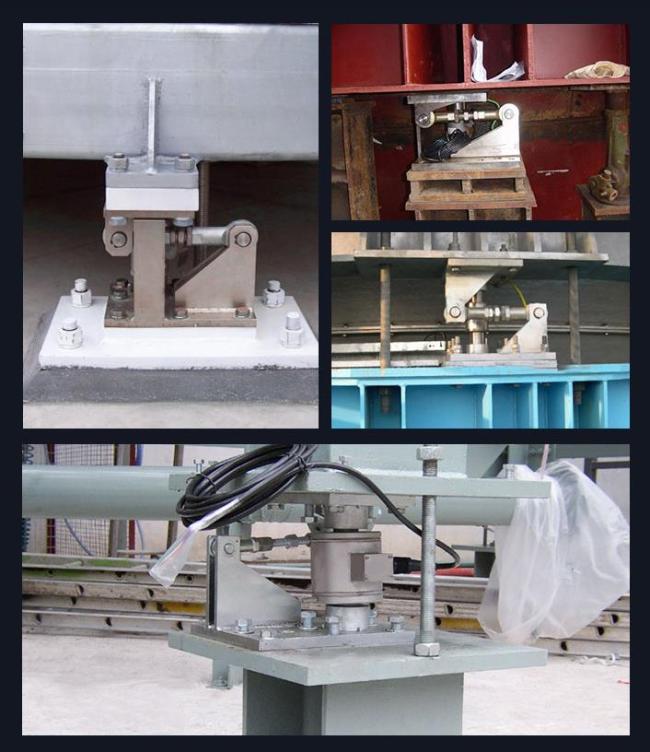

5. Application Case Show
6. FAQ
Q1: What are your terms of delivery?
A: EXW, FOB, CFR, and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with a discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has a quality problem within 12 months, please return it to us, and we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation, and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
