FIBOS FA504 Shear Beam Load Cell 3kg 6kg 10kg 20kg 30kg For Belt Weighing
FIBOS FA504 Shear Beam Load Cell 3kg,6kg,10kg,20kg,30kg For Belt Weighing
Features
Shear beam load cell 3kg,6kg,10kg,20kg,30kg FA504 measures force with mV/V output from the wheatstone bridge. The cantilever beam sensor configuration allows for precise measurement results up to accuracy class C3. The non-linearity of this bending beam load cell can be achieved maximum 0.015%F.S.
- Strong resistance to partial load
- High precision
- Easy to install
Applications
- Electronic scale
- Belt weighing
- Industrial weighing system

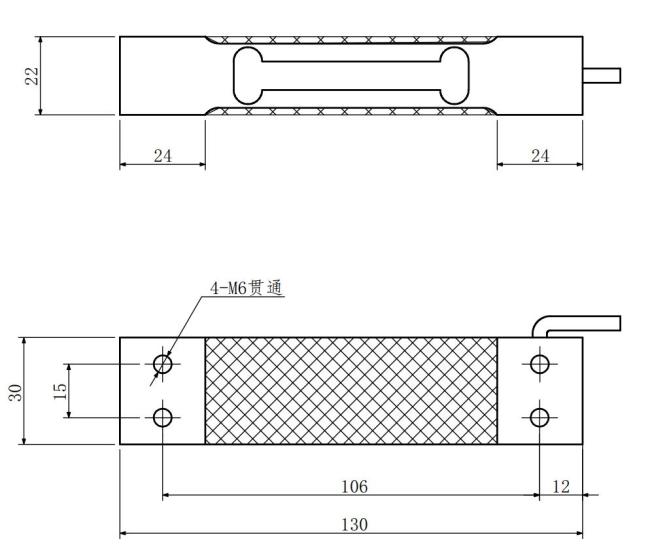

Mounting Dimension

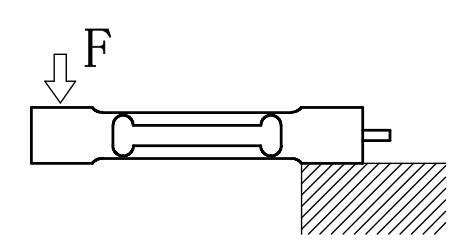

Load Direction

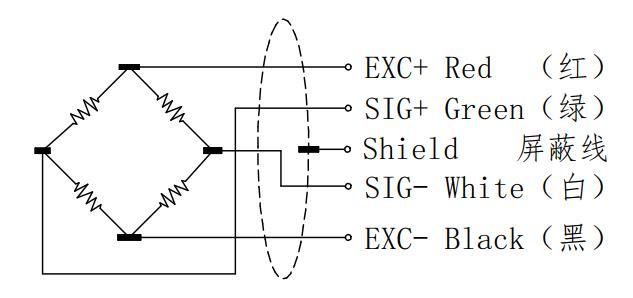

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 3,6,10,20 ,30kg |
| Accuracy class | C3 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.02%F.S. |
| Creep(30min) | 0.017%F.S. |
| Temp.effect on output | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.02%F.S./10℃ |
| Input impedance | 405±10Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ4×3000mm |
| Material | aluminum alloy |
| IP Class | IP65 |
| Max.platform size | 300mm×300mm |
