100-1000N Stainless Steel Miniature Force Sensor
1. Descriptions
100-1000N Stainless Steel Miniature Force Sensor FA107A is a model of our brand FIBOS FA1-Series, Miniature Force Sensor FA107A belongs to FA107, it can be used to measure force 100N,200N,500N and 1000N capacity, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity ≤0.5%F.S. and its Hysteresis ≤0.2%F.S..
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 100,200,500,1000N |
| Rated output | 1.5±20%mV/V |
| Zero Balance | ±2%mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 800~1000Ω |
| Output impedance | 800~1000Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2X3m |
| Material | Stainless steel |

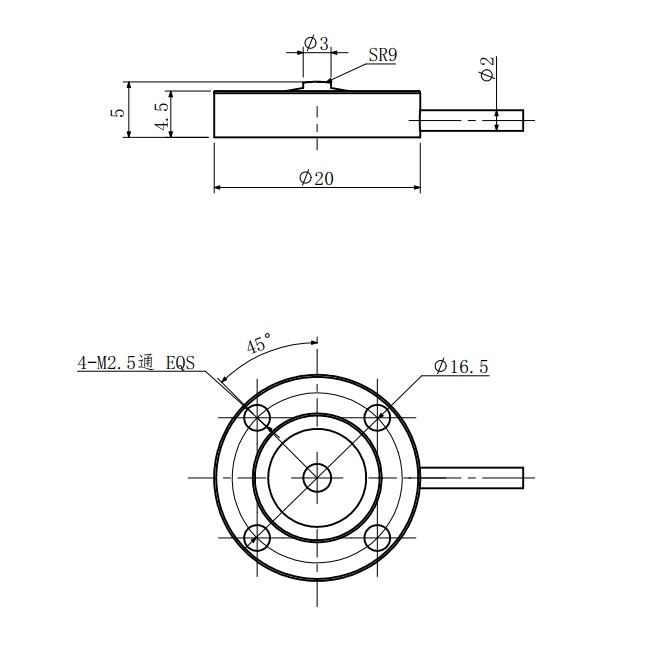

3. Dimension
4. Application
100-1000N Stainless Steel Miniature Force Sensor FA107A could be applied in all kinds of intelligent application scenarios weighing equipment.
