100n 0.3% Tension Force Transducer Stainless Steel 500n Load Cell
100-500N Stainless Steel Miniature Force Sensor
1. Descriptions
100-500N Stainless Steel Miniature Force Sensor FA107B belongs to FA107 which belongs to Miniature Force Sensor category in our brand FIBOS FA1-Series. Miniature Force Sensor FA107B can be used to measure force 100N,200N,300N and 500N capacity, its Cable size is ⌀2X3000mm, and its Material is Stainless steel.
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 100,200,300,500N |
| Rated output | 1.0±20%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.3%F.S. |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀2X3000mm |
| Material | Stainless steel |

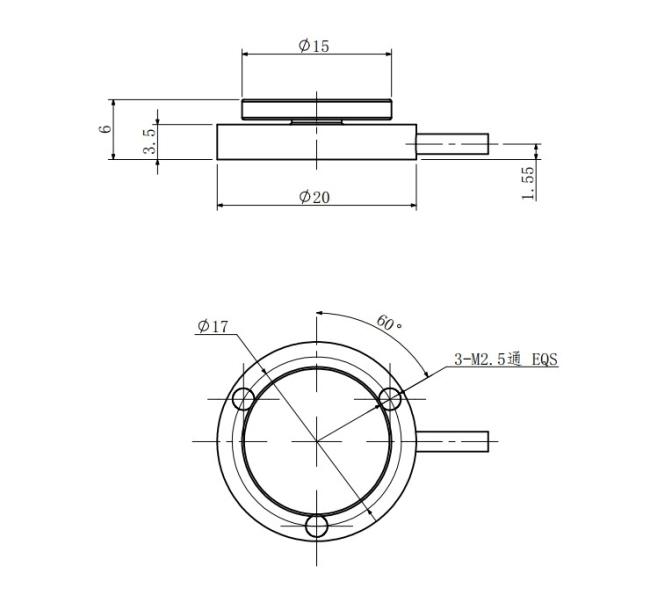

3. Dimension
4. Application
100-500N Stainless Steel Miniature Force Sensor FA107B could be used for unmanned vending machines.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
