25-500kg S Shaped Load Cell , 0.75-10 Ton Load Cell Alloy Steel
25-500kg 0.75-10t Alloy Steel S Beam Load Cell
1. Descriptions
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 25,50,100,200,250,500kg / 0.75,1,1.5,2,2.5,5,10t |
| Rated output | 2.0/3.0±1%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.024%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3000mm |
| Weight | - |
| Material | Alloy steel |

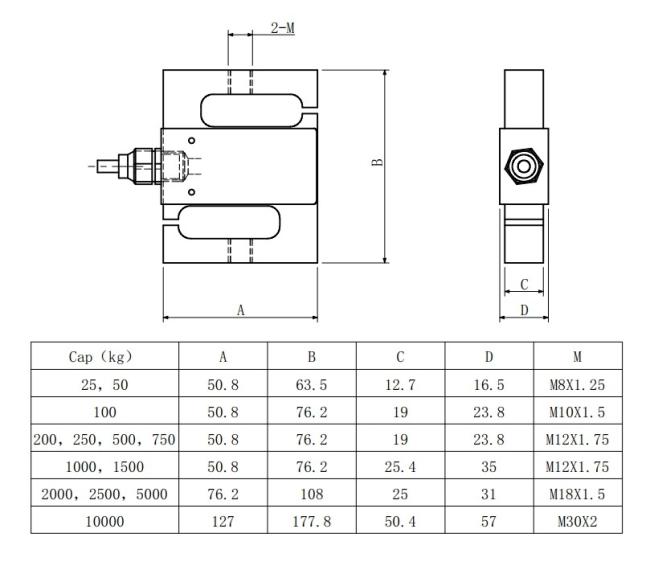

3. Dimension
4. Application
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 can be used for crane scales.
