IP66 1.5mv/V Stainless Steel Load Cell 1000 Ohm Strain Gauge Weight Sensor
50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor
1. Descriptions
50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA902 is a model of our brand FIBOS FA9-Series, Strain Gauge Weight Sensor Tension Force Sensor FA902 can be used to measure tension force 50μm/m, its Input impedance and Output impedance both are 1000±10Ω, its IP Class is IP66.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 50μm/m |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Input impedance | 1000±10Ω |
| Output impedance | 1000±10Ω |
| Temp.effect on output | 0.2%F.S./10 ℃ |
| Temp.effect on zero | 0.5%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.4kg |
| Material | Stainless steel |
| IP Class | IP66 |

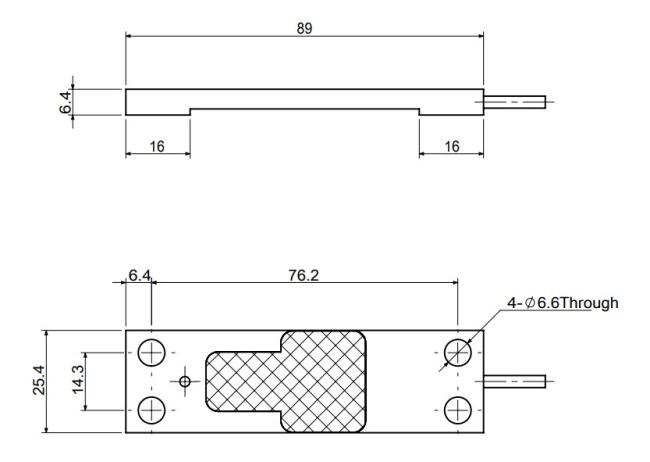

3. Dimension
4. Application
50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension Force Sensor FA902 can be used in the textile industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
