Pressure PVC Pipe Extrusion Line Adjustable Cutting Speed Max 63mm Cutting Pipe

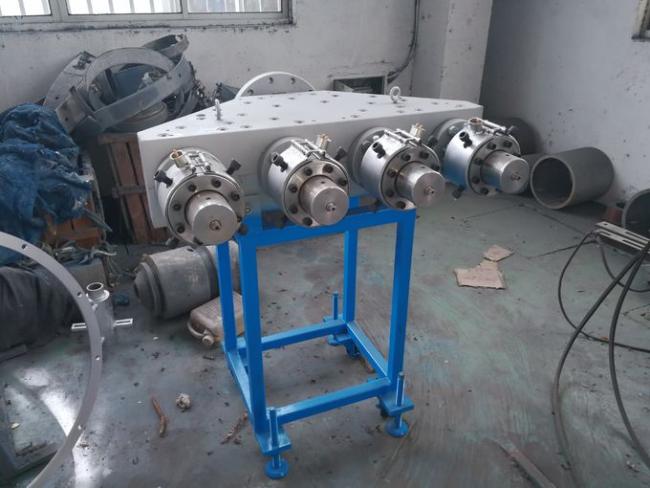

PVC /UPVC ELECTRICAL CONDUIT PIPE MACHINE FOUR STRANDS DIAMETER 16-32MM
Production Description:
Low Invest /Stable Output UPVC/CPVC/PVC Plastic Pipe Production Extrusion Line adopts friendly interface, intelligent control, it is convenient for use and reliable in working. The screw,gear-reducer and mould are specially designed for high temperature,high viscosity,difficult plasticization of the PVC/CPVC melt and ensure the continuous production with stability. The finished product widely used in drainage, electricity cable transportation etc. It can extrude the single wall pipe, foamed core pipe, inner spiral pipe with one, or more cavities pipe extrusion.
Specifications:
| Model |
Screw diameter(mm)
|
Main motor power (kw)
|
Max output(kg/h)
|
Calibrating length(mm)
|
Mode of haul-off | Cutting mould |
Pipe diameter(mm)
|
| SJG-110/50 | 51/105 | 22 | 180 | 4000 |
two rubber belt
|
saw cutting
|
Φ50-110 |
| SJG-200/160 | 65/132 | 37 | 250 | 4000 |
three rubber belt
|
saw cutting
|
Φ160-200 |
| SJG-400/250 | 80/156 | 55 | 380 | 6000 | four rubber belt |
planet cutting
|
Φ250-400 |
| SJG-630/400 | 92/188 | 90 | 600 | 6000 | six rubber belt |
planet cutting
|
Φ400-630 |
Applications:
Low Invest /Stable Output UPVC/CPVC/PVC Plastic Pipe Production Extrusion Line adopts friendly interface, intelligent control, it is convenient for use and reliable in working. The screw,gear-reducer and mould are specially designed for high temperature,high viscosity,difficult plasticization of the PVC/CPVC melt and ensure the continuous production with stability. The finished product widely used in drainage, electricity cable transportation etc. It can extrude the single wall pipe, foamed core pipe, inner spiral pipe with one, or more cavities pipe extrusion.
which is high-intensity,high temperature-resistant,chemical-resistant,insulate and flame retardant. The pipe is the best choice for protect power cable and have good prospects.
Advantage of the UPVC/CPVC pipes:
1.Non-toxic: no heavy metal additives, not be covered with dirt, not be contaminated by bacterium.
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion.
3.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
5.Long Life: more than 50 years under normal conditions.
6.Recycled and Environment-friendly.
