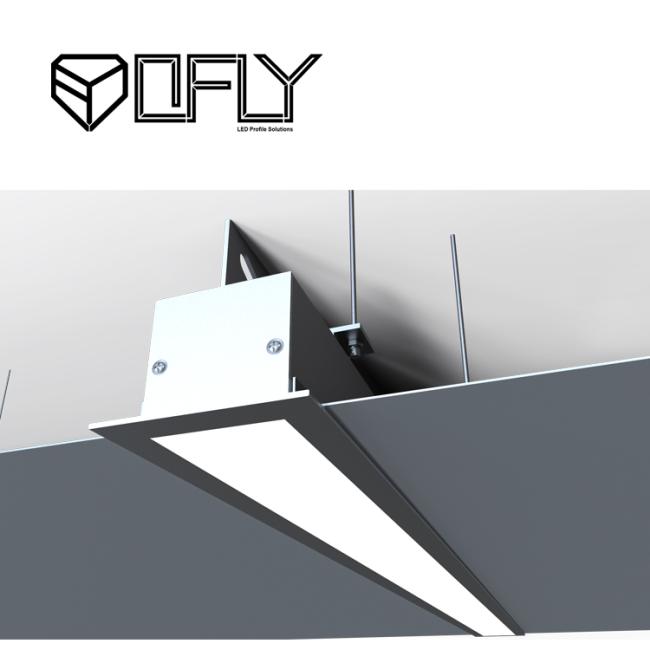

Opal Recessed Led Strip Lighting Channel 6063 T5 Aluminium Material 65mm X 55mm
High Class Aluminum LED Profile Recessed Profile For Ceiling 65*55
Recessed LED Profile, LED Aluminum Profile
1. FEATURES AND APPLICATIONS:
Led Aluminum Profile is used for Led Strip lights installation. The Led Aluminum Profile anodized finish provides maximum protection against the elements, preventing rust and corrosion, and making them perfectly suitable for rough indoor or outdoor use. At the same time, Diffusers are available to maximize protection of the led strip and to control the diffusion of light from the strip. End Caps are also available to fully enclose the profile and also cleanly direct the wiring to the strip.
2. SPECIFICATION:
| Item NO. | YD-6535 |
| Size | 65mm*55mm |
| Length | 1m, 2m, 3m, 4m |
| Customized Length | Available |
| PCB Width Inside | ≤12.5mm |
| PC Cover | Milky/Clear/Opal/Semi-clear |
| Finished | Anodized |
| Material | 6063 T5 aluminum alloy |
| End Caps | 2 End caps, one with wire hole, one without |
| Brackets | 2 pieces |
| Installation | Recessed |
| Lead Time | 5-7 days |
| Package | 8mm Thick Carton Packaging |
Hot Sales
FAQ
Q1: What is the max length I can get?
A1: Max 2 meters by express or 4 meters by sea freight.
Q2: Can I have profile in different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity.
Q3: Can I customized colors?
A3: Color can be customized.
Q4: Can I join them together to make one continuous length?
A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)
Q5: After the payment, how long can I get the goods?
A5: After we receive the payment, we will need 3-10 days to prepare, then we will send the goods to shipping agency. Lead time depends on the shipping method, air freight will take 5-8 days, sea freight will take 25-30 days.
