Outdoor Waterproof LED Profile Super Slim Recessed Aluminum Channel
50*25mm Waterproof LED Profile Outdoor,Super Slim Recessed Aluminum Channel
Waterproof LED Profile, LED Aluminum Profile
Ofly LED is a supplier of best-in-class LED lighting products and related value-add services based in Shenzhen, China.We supply led aluminum profiles ex-stock.We are adding new products to our catalog all the time.
1. FEATURES:
- Made specially to be routed into wood panels, dry-wall, or other substrates. The opal / translucent cover creates a bright "frostedglow-edge" effect ideal for ambient lighting. Easy assembly, light weight, and environment friendly. The aluminum extrusion serves as a heat-sink and helps to dissipate the heat from LED Light Strips prolonging their life.
2. SPECIFICATION:

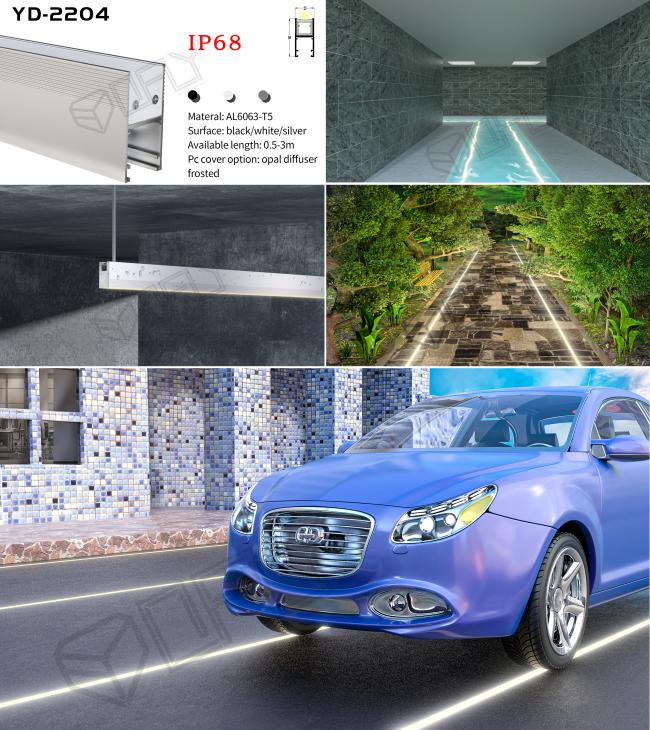

| Item NO. | YD-2204 |
| Size | 50*25mm |
| Length | 1m, 2m, 3m, 4m |
| Customized Length | Available |
| PCB Width Inside | ≤12.5mm |
| PC Cover | Milky/Clear/Opal/Semi-clear |
| Finished | Anodized |
| Material | 6063 T5 aluminum alloy |
| Plastic Profile | 1 piece |
| Silicone Pad | 2 pieces |
| End Caps | 2 End caps |
| Aluminum End Caps | 2 End caps |
| Waterproof Connector | 2 pieces |
| Wired Waterproof Connector | 2 pieces |
| Flat Head Screw | 8 pieces |
| Installation | Recessed |
| Lead Time | 5-7 days |
| Package | 8mm Thick Carton Packaging |
3. APPLICATIONS:
* Our Waterproof LED Profile is ideal for floor lighting, driveway lighting, walkway lighting, and a variety of other applications requiring heavy-duty, robust light fixtures.
* A deeper version of our popular surface LED profile, providing more distance between the LED and diffuser thus reducing spotting and producing a smoother light appearance. This profile is best used by recessing into a 50mm deep groove to allow it to sit flush with the mounting surface.
Hot Sales
FAQ
Q1: Can I join them together to make one continuous length?
A1: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line).
Q2: What is the max length of the LED profile ?
A2:Max in 3meters for air shipment, 5meters for sea shipment.
Q3: Can I join them together to make one continuous length?
A3: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)
Q4: May I have a look at your catalog?
A4: Sure. We have the aluminum tile trim profile catalog here. Or maybe you tell us where you use it, then we will recommend the related products to save time.
Q5: How do you pack the goods?
A5: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.
Welcome ODM Customized LED Aluminum Profile
