5-20 Liter Liquid Drum Linear Weigh Filler Liquid Filling Machine 20 Liters
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30days
Brand:
ZT-PACK
Product Description
High Quality 5-20 Liter Liquid Drum Linear Weight System Liquid Fill machine 20 liters Liquid Filling Machine
Description
1 Filling range :5-30kg
2 Bottle size range : L: 160mm~360mm
W: 140mm~260mm
H: 250mm~500mm
(Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm)
3 Diameter of bottle mouth:≥Φ40mm
4 Power Supply: ~ 220 V, 50 Hz
5 the total power: 3.5 kW
6. Air consumption:120L/Min
7 measurement accuracy: ± 0.5% (Note: Filling accuracy depends on the viscosity of the material as well as the continuity and stability of the material supply);
8 Production capacity:≤480bottles/hour
9 .Bottle feed direction:From left to rig
2 Bottle size range : L: 160mm~360mm
W: 140mm~260mm
H: 250mm~500mm
(Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm)
3 Diameter of bottle mouth:≥Φ40mm
4 Power Supply: ~ 220 V, 50 Hz
5 the total power: 3.5 kW
6. Air consumption:120L/Min
7 measurement accuracy: ± 0.5% (Note: Filling accuracy depends on the viscosity of the material as well as the continuity and stability of the material supply);
8 Production capacity:≤480bottles/hour
9 .Bottle feed direction:From left to rig
Product Application
The machine has controlled by PLC, it can feed bottles, count bottles and peel weighting automatically. This product manufactured with a high degree of automation, every filling head has one high-precision weighing feedback system and it could set volume for each head or fine turning for single head to ensure same volume. Whole machine made of stainless steel, with diving filling(fast and slow) function, also could effectively reduce foam

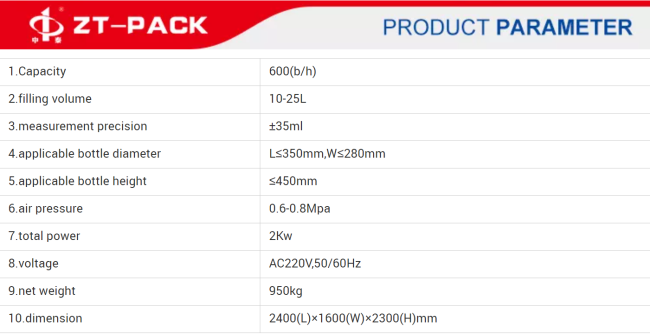

Parameter
Details:
