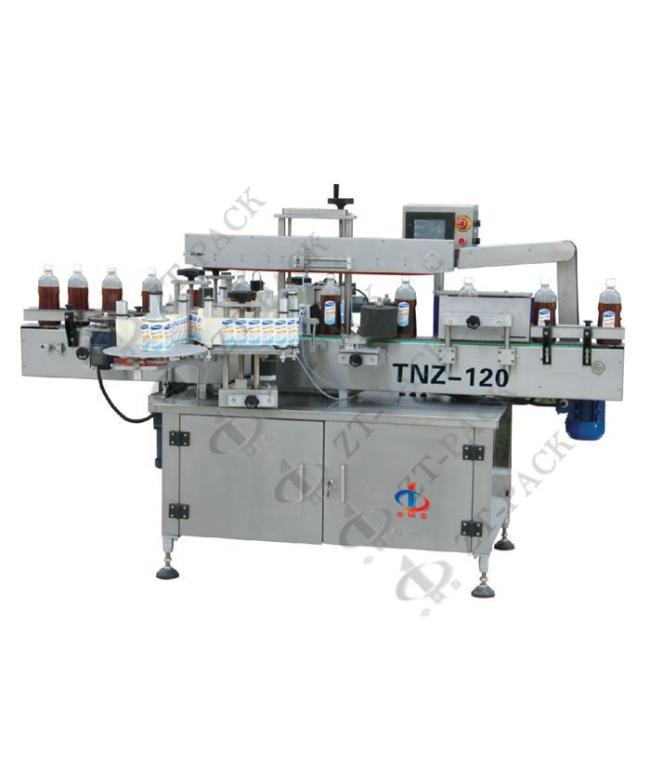

TNZ-120 Automatic Two Side Front And Back Labeling Machine

Product description:

Automatic double side front and back self adhesive labelling machine for bottles is design to handle a wide range of self-adhesive labelling applications with speed and accuracy in either single, twin or tri-labelling head configuration can apply front, back, partial wrap or full wrap labels as well as tamper evident or promotional top labels. Two label dispensers operates independently for one side labeling or operate simultaneously for two side labeling which allows different size of label application on either side, An optional wrap station is offered for partial wrap or full wrap labels as well as tamper evident or promotional top labels. Front and Back sticker labeler machine is equipped with a chain aligner system for product orientation, ensuring correct positioning of the containers before the label is applied. The container position is adjusted by the spring mounted motorized chains before it moves under the head gripper where it is released. The head gripper is mounted on a vertical stainless steel spindle system for easy adjustment when needed. Additional features includes stainless steel construction and anodize components, world famous electronic components, servo motor drive, powered assist web take up, PLC control and user friendly HMI.

Features:

1. The machines use the advanced man-machine interface automatic control technology,the key electric elements adopt international famous products.

2. The machine operation, easy to adjust, can be used on the production line.

3. The unique design of the knife plate within the scope of the specification, shall not be in a knife block, by changing the blade fast and convenient. 4. The unique set of standard methods, using the compression type of label, is convenient and reasonable.

5. The whole machine transmission type structure to make the changing bottles is extremely convenient.

6. Suitable for 5 ~ 10 "the membrane material, uniform, efficient, and can do, stop action.

7. Can be used in square and round bottles.

8. the elevating center pillar height is adjusted.

9. Using high sensitivity optical fiber electric eye, precision-cut length.

• Heavy-duty stainless steel constructed anodized aluminum components
• Electronic components are a world-famous brand
• Capable of labeling flat, oval, square and round containers
• Variable speed bottle infeed separator wheel
• PLC control and user-friendly HMI
• Servo motor drive delivers accurate and high-speed repeatable labeling
• A top stabilizing/conveyor belt is provided to hold the bottle for proper labeling.
• Automatically synchronized label head and conveyor belt
• Power-assisted web take-up
• Low or missing label detection with an automatic stop system to prevent mislabeling
• Non-contact photo eye sensors
• Label counter

Suitable for :

It is suitable for double-ided or single-sided self-adhesive labels for square bottles, round bottles, and irregular bottles. It is usually widely used in daily chemicals, edible oils, lubricants, pesticides, and personal care.
