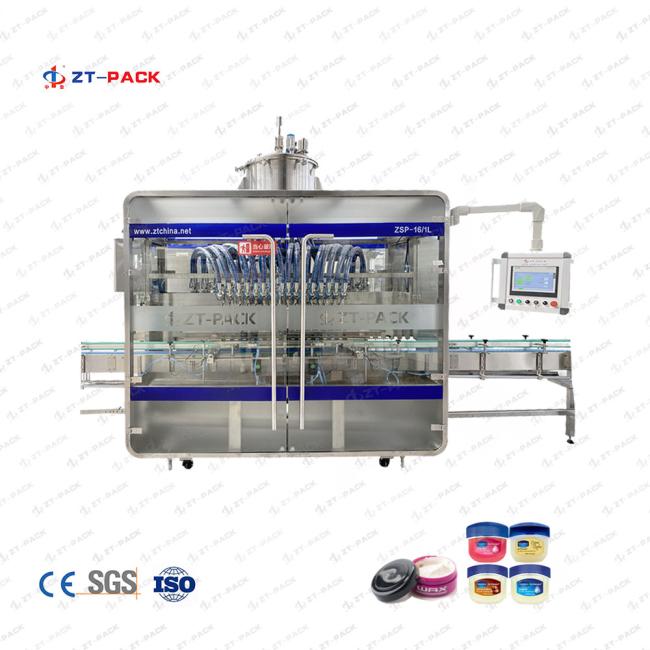

4000bph Vaseline Jelly SS316 wax thick liquid heating hot Filling Machine
4000bph Vaseline Jelly SS316 Wax Filling Machine
1,The equipment has strong compatibility, and can quickly adjust and replace bottles of different shapes and specifications without replacing parts, which can meet the production requirements of multiple varieties and specifications.
2,PLC control, touch bottle operation, simple and convenient operation.
3,The use of international famous brand electrical components, performance, and stability.
4,User can adjust filling range, the materials is not enough in the hopper, the computer will give the feeding pump signal to
add material by level sensor. When the material is full, the pump will stop automatically.
5,Machine body is made by 304 stainless steel, easy to clean, the machine is full compliance with GMP requirements.
6,Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
Application:
This machine is suitable for filling liquid agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
- The touch screen make it easier to control and watch the working data in real time.The flling volume and filling speed can be controlled according to production needs.The PLC panel makes it possible to set control panel language into other kinds of language,please contact us for custom if you need this.

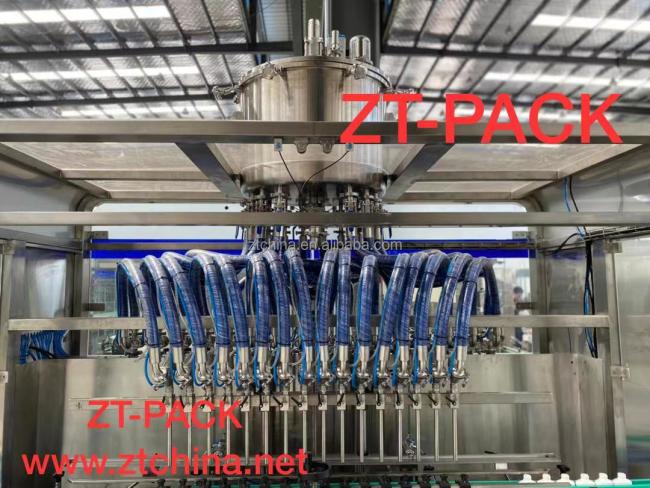

- The pneumatic filling nozzle can ensure filling paste faster,it is with anti-dripping design which ensure the machine and production cleanliness
- High quality conveyor belt can transfer bottles automatically,it is designed with protective guard which can make products will be transferred stably. The size of the conveyor is2000mm*125mm. we can customize the size according to your needs.
- The machine is equipped with high quality electric eye,can detect passing by container accurately and realize the automated work,reduce the production error and improve working eficiency.
- This machine is equipped with pneumatic diaphragm pump,it is with great power,can pump paste and liquid,make the machine work faster.
Details:
