3l Lubricant Filling Machine Ss304 2 Litre Bearing Grease Filling Machine
Low Price Brake Oil Enginer 2L 3L Motor Oil Bottle Filling Lubricant Oil Filling Machine Production Line
Description

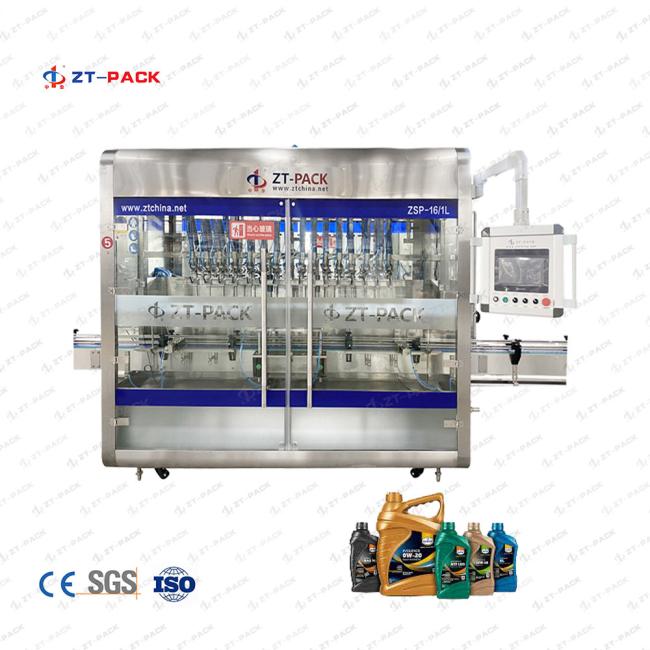

Low Price Brake Oil Enginer 2L 3L Motor Oil Bottle Filling Lubricant Oil Filling Machine Production Line is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.
Empty bottles are staged on the main drive conveyor prior to entering the piston filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.
Parameters:
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(500mL) | 1500B/H | 2000 B/H | 2500 B/H | 3000 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ40mm——Φ100mm Height:80mm——280mm | ||||
| Filling accurate | ≤100ml:+ -1.5ml 100-500ml:+ -2ml 500-1000ml:+ -3ml |
||||
| Neck diameter | ≤Φ10mm ( can be designed accordingly) | ||||
| Filling range | 50ml——5000ml (From ZT-PACK) | ||||
| Filling System | Gravity Time Control | ||||
| Air pressure | 0.6Mpa | ||||
| Power supply | 220V ；50HZ / 60HZ | ||||

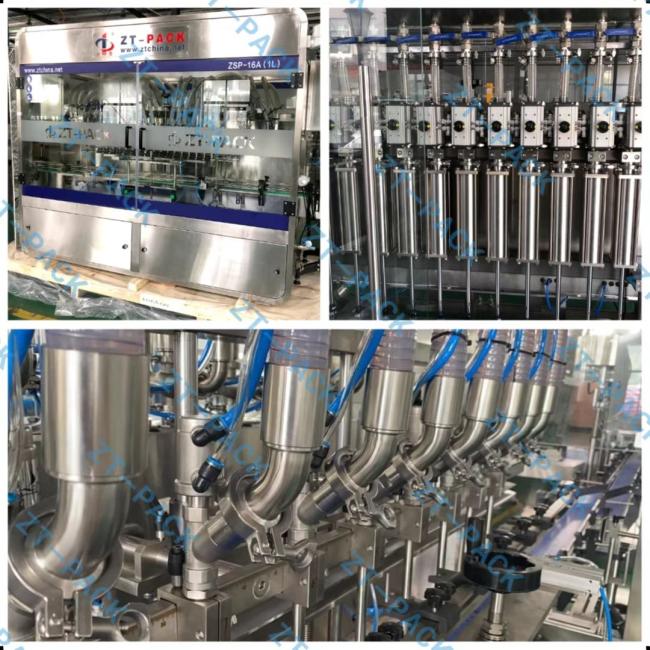

Details:
