2000bph Liquid Bottling Machine

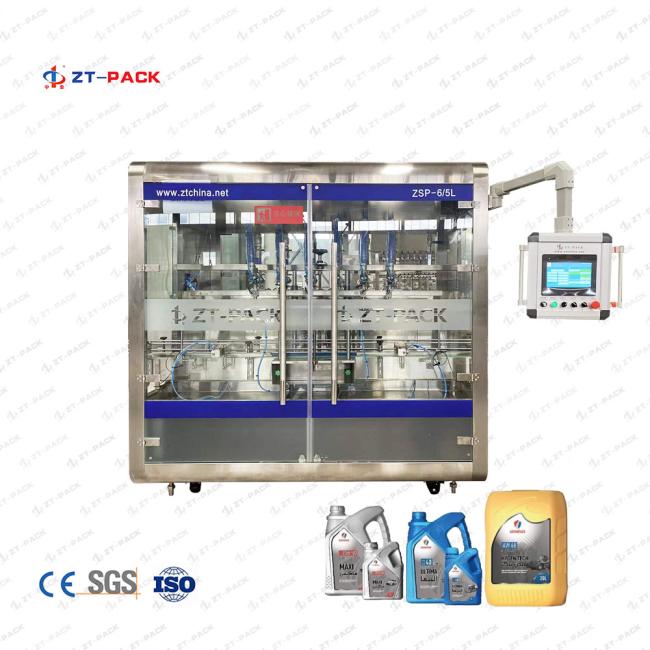

High Speed Automatic Lubricant Oil 1L 5L Liquid Filling Capping Labeling Machine/Oil Bottling Machine
Description
High Speed Automatic Lubricant Oil 1L 5L Liquid Filling Capping Labeling Machine/Oil Bottling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
The application of touch-screen technology, the operation of the machine is more reliable, convenient and human-machine interface more friendly. Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements, so no bottle no filling, plugging bottles will automatically stop and alarm,filling way with dive style, using different materials seal rings, to meet the different characteristics of the filling material.The machine produced according to GMP standards , all piping connections using quick way to disassemble and clean convenient location and contact with the material exposed parts are made of high quality stainless steel , machine safety, environmental protection , health, beauty, able
Parameters:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width 135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-5000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquidr
14.Bottle feed direction:From left to right
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(500mL) | 1500B/H | 2000 B/H | 2500 B/H | 3000 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ40mm——Φ100mm Height:80mm——280mm | ||||
| Filling accurate | ≤100ml:+ -1.5ml 100-500ml:+ -2ml 500-1000ml:+ -3ml |
||||
| Neck diameter | ≤Φ10mm ( can be designed accordingly) | ||||
| Filling range | 50ml——5000ml (From ZT-PACK) | ||||
| Filling System | Gravity Time Control | ||||
| Air pressure | 0.6Mpa | ||||
| Power supply | 220V ；50HZ / 60HZ | ||||

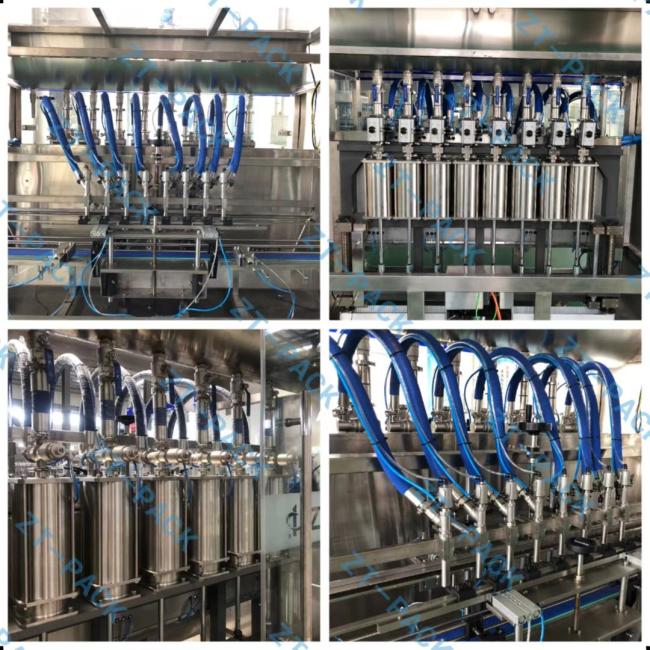

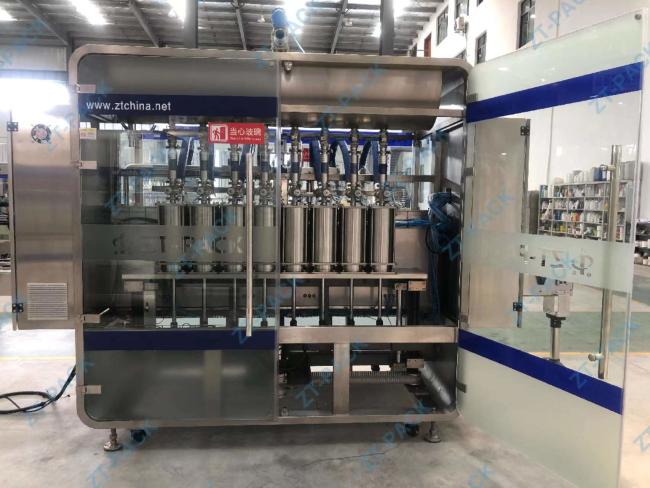

Details:
