Micro Nema 8 Non-Captive Linear Stepper Motor Nema 17 Hybrid For Monitoring Equipment
Price:
$2~$5/PCS
MOQ:
100PCS
Delivery Time:
Trial orders :2 WEEKS Bulk orders: within 3 weeks
Brand:
JIUQI
Product Description
Micro Stepper Motor Hybrid Stepper Motor For Monitoring Equipment
1. Description :
- NEMA 8 frame size
- High step accuracy and resolution
- Low vibration and noise
- Can be customized for winding current, shaft options and cables and connectors.
- Two-phase, three-phase and four-phase
2. Specification
| PN | Step angle | Current | Holding torque | weight | No. of leads | Motor length |
| (°) | A | N.m | kg | mm | ||
| HB20-JQ-1 | 1.8 | 0.6 | 0.018 | 0.06 | 4 | 33 |
| HB20-JQ-2 | 1.8 | 0.6 | 0.03 | 0.08 | 4 | 42 |
| HB20-JQ-3 | 1.8 | 0.8 | 0.036 | 0.09 | 4 | 48 |

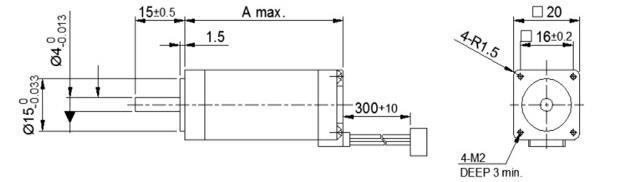

3. Mechanical Dimension:MM

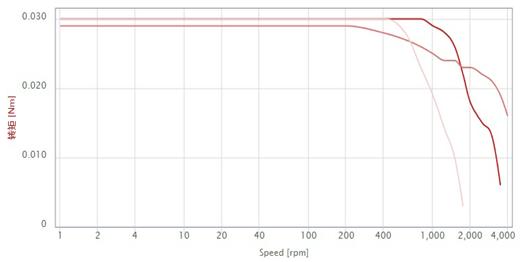

4. Performance curve
5. Typical Applications
· 3D Printer
· Monitoring Equipment
· Medical equipment
· office automationadvertising equipment
· advertising equipment
· CNC Engraving Machine
6. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
