Column Type Aluminum Alloy High-Altitude Working Platform Self-Walking Working Platform Mast Maximum Lift 6m Lift Table

Column Type Aluminum Alloy High-Altitude Working Platform Self-Walking Working Platform Mast Maximum Lift 6m Lift Table

1.Proportional controls
2.Automatic pothole protection
3.Drivable at full height
4.Non-marking tyre
5.Automatic brake system
6.Emergency lowering system
7.Emergency stop button
8.Cylinder holding valve
9.Onboard diagnostic system

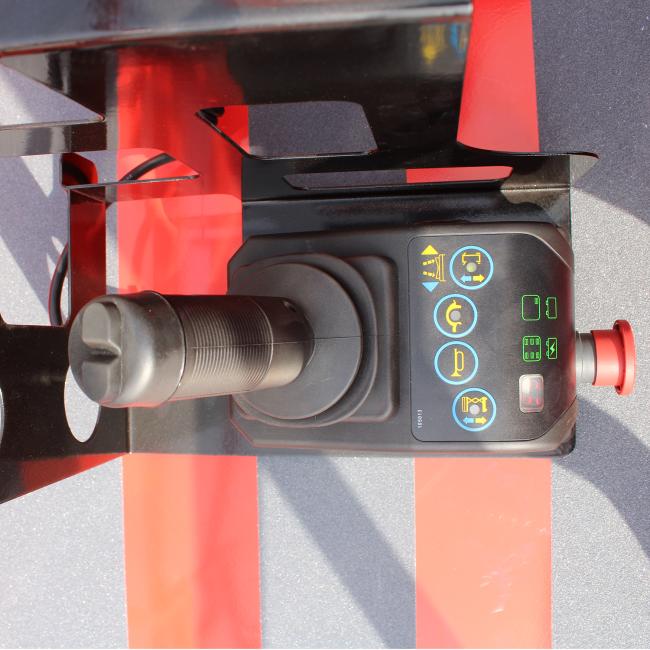

Integrated handle is easy to operate

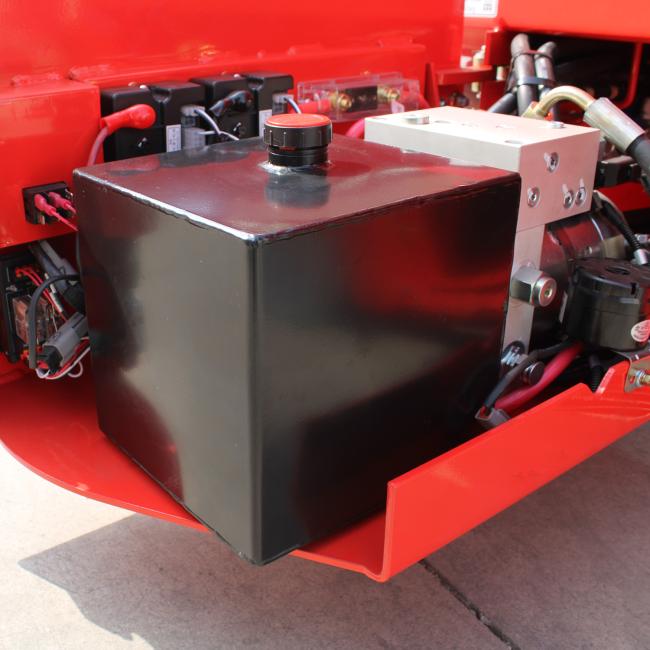

High quality hydraulic work unit and accurate ECU control

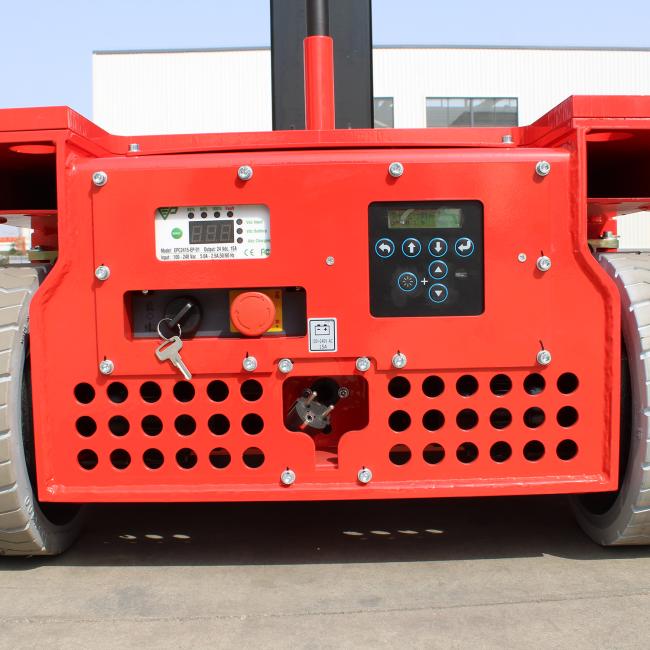

More convenient power switch emergency brake switch for safety escort, HD instrument more convenient to check the running status

Rubber tires absorb the vibrations of driving better

Lower safety center prevents tilt

Product Parameter

Model	AMWP3.6-6100	AMWP4.8-6100	AMWP6-6100
Max working height(m)	5.6	6.8	8
Max platform height(m)	3.6	4.8	6
Loading capacity(kg)	227	227	159
Ext. platform capacity(kg)	114	114	114
Overll lenght(m)	1.36	1.36	1.36
Overll width(m)	0.76	0.76	0.82
Overall height(m)	1.7	1.98	1.98
Platform sieze(m)	1.3*0.7	1.3*0.7	1.28*0.7
Ext.Platform lenght(m)	0.51	0.51	0.51
Wheel base(m)	1.04	1.04	1.04
Inner turning radius(m)	0.3	0.3	0.3
Outer turning radius(m)	1.8	1.8	1.8
Travel speed(km/h)	4	4	4
Travel speed(raised)(km/h)	1.1	1.1	1.1
Up/down speed(sec)	31/32	41.5/42	52/53
Gradaeability	25%	25%	25%
Drive tyres(mm)	305*100	305*100	305*100
Drive Motors	2*24VDC/0.5KW	2*24VDC/0.5KW	2*24VDC/0.5KW
Lifting motor	24VDC/1.3KW	24VDC/1.3KW	24VDC/1.3KW
Battrey	2*12V/100Ah	2*12V/100Ah	2*12V/100Ah
Chaeger	24V/15A	24V/15A	24V/15A
Weight(kg)	810	980	1060

Applications
Aerial Work Platforms is widely used for the equipment installations and maintenance such as construction sites workshops, warehouse, granary, theatre or museum, bus/railway stations, hotels, airports, gas station and aerial pipeline. Non-trace universal polyurethane wheels used will be no damage to ground. DC Battery power make the low noise when using and convenient to moving and one person operation

Certificate

Producr line

We are a manufacturer specializing in the production of handling equipment. We firmly follow the trend of international modern industrial and logistics equipment in the direction of convenience, intelligence, energy saving and environmental protection,and is determined to become a high-tech enterprise in logistics handling, and strive to become a leader in logistics solutions.
We have internal combustion counterbalanced forklifts, battery counterbalanced forklifts, electric logistics handling equipment container cranes, electric hoists,self-propelled high-altitude working platform,etc., and forklift can be equipped with accessories with different functions to meet the needs of customers in different places and environments,Our factory has advanced parts processing center, robot welding equipment, parts self-propelled hoist conveying line, painting line, assembly line whole machine performance testing line, forklift parts test bench and ERP management system. Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Being open, vibrant, confident and courageous,, we are always warmly welcome friends from all over the world to joint efforts for a brightful future.

FAQ

Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?
A: Normally we accept, TT, LC at sight.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.

Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.

Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.

Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.

Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
