Customized Crane Weight Scale Alloy Or Plastic Shell Hanging Type
Price:
USD 136-504 /PC
MOQ:
10
Delivery Time:
15-20DAYS
Brand:
Physidal
Product Description
OCS-H5 Crane Scale
High quality alloy steel load components
All steel impact resistant casing
Word high 30mm led display
High intensity activity type rings
High-capacity rechargeable battery
Stainless steel panel buttons
Infrared remote control
Series specifications: 1000kg to10000kg
Specification
| The accuracy level | OIML Ⅲ级 |
| Peel the scope | 100%F.S |
| Zero range | 4%F.S |
| Safe load | 120%F.S |
| Ultimate load | 500%F.S |
| The overload warning value | 100%F.S.+9e |
| The battery specification | 6V/4Ah |
| Continuous working time | >80h |
| The charger specification | 6V/1000mA |
| The remote control distance | ≥10m |
| Temperature range | -10℃~40℃ |

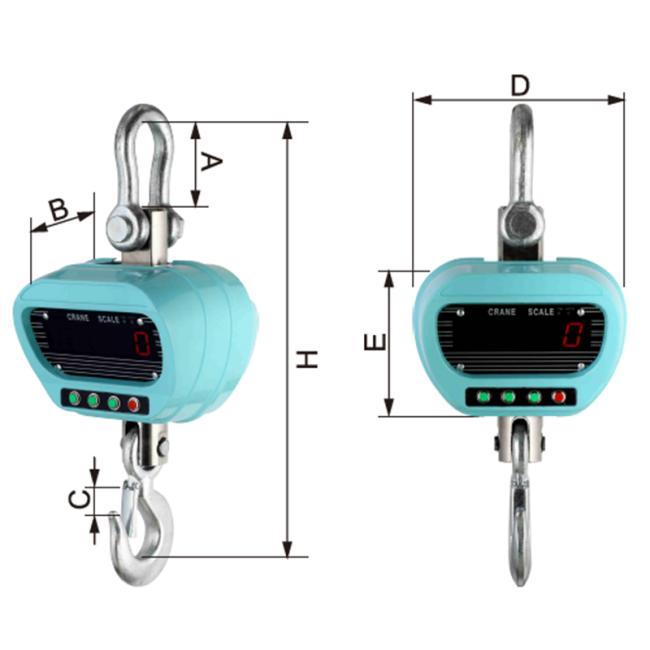

DIMENSION AND DIVISION
| MODEL | TON | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W(kg) | CARTON(mm) |
| H5 | 1 | 95 | 220 | 27 | 245 | 165 | 480 | 10.8 | 485*440*260 |
| 2 | 95 | 220 | 32 | 245 | 165 | 485 | 10.8 | 485*440*260 | |
| 3 | 95 | 220 | 37 | 245 | 165 | 540 | 11.1 | 485*440*260 | |
| 5 | 125 | 220 | 40 | 245 | 165 | 635 | 13 | 485*440*260 | |
| 10 | 125 | 220 | 50 | 245 | 165 | 705 | 17 | 485*440*260 |
