Hanging Type Electronic Crane Scale 1000kg Rated Load With Infrared Remote Control
Price:
USD 174-1259/PC
MOQ:
10
Delivery Time:
15-20DAYS
Brand:
Physidal
Product Description
OCS-H6 CRANE SCALE
High quality alloy steel load components
All steel impact resistant casing
Word high 30mm led display
High intensity activity type rings
High-capacity rechargeable battery
Stainless steel panel buttons
Infrared remote control
Series specifications: 1000kg to 30000kg
Specification
| The accuracy level | OIML Ⅲ级 |
| Peel the scope | 100%F.S |
| Zero range | 4%F.S |
| Safe load | 120%F.S |
| Ultimate load | 500%F.S |
| The overload warning value | 100%F.S.+9e |
| The battery specification | 6V/4Ah |
| Continuous working time | >80h |
| The charger specification | 9V/1500mA |
| The remote control distance | ≥10m |
| Temperature range | -10℃~40℃ |

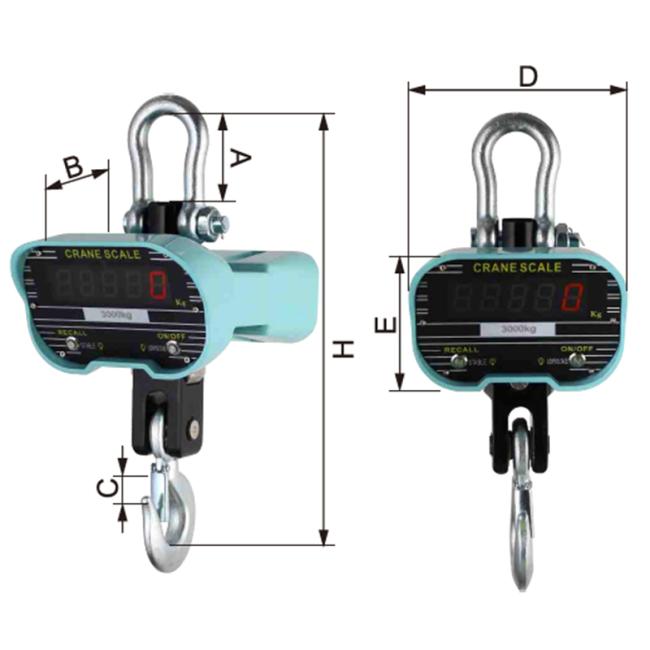

Dimension and Division
| MODEL | TON | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W(kg) | CARTON(mm) |
| H6 | 1 | 95 | 345 | 27 | 230 | 160 | 470 | 11.1 | 490*450*290 |
| 2 | 95 | 345 | 32 | 230 | 160 | 475 | 11.3 | 490*450*290 | |
| 3 | 95 | 345 | 37 | 230 | 160 | 570 | 12.2 | 490*450*290 | |
| 5 | 115 | 345 | 40 | 230 | 160 | 610 | 16.9 | 490*450*290 | |
| 10 | 115 | 345 | 50 | 230 | 160 | 725 | 30.3 | 490*450*290 | |
| 15 | 115 | 345 | 65 | 230 | 160 | 820 | 33 | Wood case800*400*400 | |
| 20 | 225 | 345 | 85 | 230 | 160 | 1100 | 52 | Wood case800*400*400 | |
| 30 | 160 | 345 | 105 | 230 | 160 | 1150 | 95 | Wood case800*400*400 |
