XL GE Rotex Flexible Jaw Minimal Loss 98A Synchronous Rectification
XL GE Rotex Flexible Jaw Coupling, The Same Type Of Rotex Coupling 98 A Spider Purple Spider Coupling
FEATURES AND ADVANTAGES
The Curved Jaw couplings can be used in many applications and serve as an
all-purpose coupling. The basic design of the Curved Jaw allows for a higher torque
capacity in a compact design. The curved tooth has a greater contact area which
gives it the high torque capacity, and reduces edge pressure. It will accommodate
axial, radial and angular shaft misalignment.
The hubs are produced from a variety of materials including: aluminum, gray iron,
Steel and stainless steel. The spider elements are available in various durometer
options in Urethane & Hytrel. The spiders can perform under normal duty
cycle conditions to heavy duty cycles which include shock loading and can minimize torsional vibrations in the system.
Product Features
1. Three Piece Design
2. No Lubrication Required
3. Variable Durometer
4. Urethane Elements
5. No Metal to Metal Contact
6. High Torque Capacities
7. Variable Hub Materials

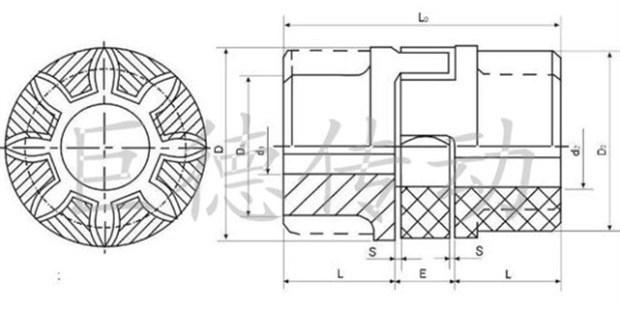

| Size | Type | Torque Tn (N.m) | Max Speed [n] (r/min) | Shaft hole DIA di dz | Hole Length L | D | D: | Dz | E | S | Moment of inertia (Kg-m2) | Weight (kg) |
| GS19 | XL1 | 34 | 19000 | 6-19-24 | 25 | 40 | 32 | 40 | 16 | 2 | 0.0008 | 0.328 |
| GS24 | XL2 | 120 | 14000 | 8-24-28 | 30 | 55 | 40 | 55 | 18 | 2 | 0.0003 | 0.66 |
| GS28 | XL3 | 320 | 11800 | 10-28-38 | 35 | 65 | 48 | 65 | 20 | 2.5 | 0.0007 | 1.16 |
| GS38 | XL4 | 650 | 9500 | 12-38-45 | 45 | 80 | 66 | 78 | 24 | 3 | 0.002 | 2.27 |
| GS42 | XL5 | 900 | 8000 | 14-42-55 | 50 | 98 | 75 | 94 | 26 | 3 | 0.005 | 3.57 |
| GS48 | XL6 | 1050 | 7100 | 1548-60 | 56 | 105 | 85 | 104 | 28 | 3.5 | 0.008 | 4.80 |
| GS55 | XL7 | 1250 | 6300 | 20-55-70 | 65 | 120 | 98 | 118 | 30 | 4 | 0.016 | 7.37 |
| GS65 | XL8 | 1280 | 5600 | 22~65-75 | 75 | 135 | 115 | 134 | 35 | 4.5 | 0.031 | 10.89 |
| GS75 | XL9 | 2930 | 4750 | 30-75-90 | 85 | 160 | 135 | 158 | 40 | 5 | 0.068 | 17.73 |
| GS90 | XL10 | 7200 | 3750 | 40-90-100 | 100 | 200 | 160 | 180 | 45 | 5.5 | 0.159 | 29.60 |
| GS100 | XL11 | 9900 | 3350 | 50-100-110 | 110 | 225 | 180 | 200 | 50 | 6 | 0.277 | 41 |
| GS110 | XL12 | 12000 | 3000 | 60-110-125 | 120 | 255 | 200 | 230 | 55 | 6.5 | 0.51 | 58.6 |
| XL13 | 15000 | 2650 | 60-125-145 | 140 | 290 | 230 | 265 | 60 | 7 | 1 | 88.4 | |
| XL14 | 22000 | 2360 | 60-140-165 | 155 | 320 | 255 | 300 | 65 | 7.5 | 17 | 120.6 | |
| XL15 | 30000 | 2000 | 80-160-190 | 175 | 370 | 290 | 345 | 75 | 9 | 3.35 | 179.1 | |
| XL16 | 35000 | 1800 | 85-180-220 | 195 | 420 | 325 | 400 | 85 | 10.5 | 6.37 | 261.0 |
