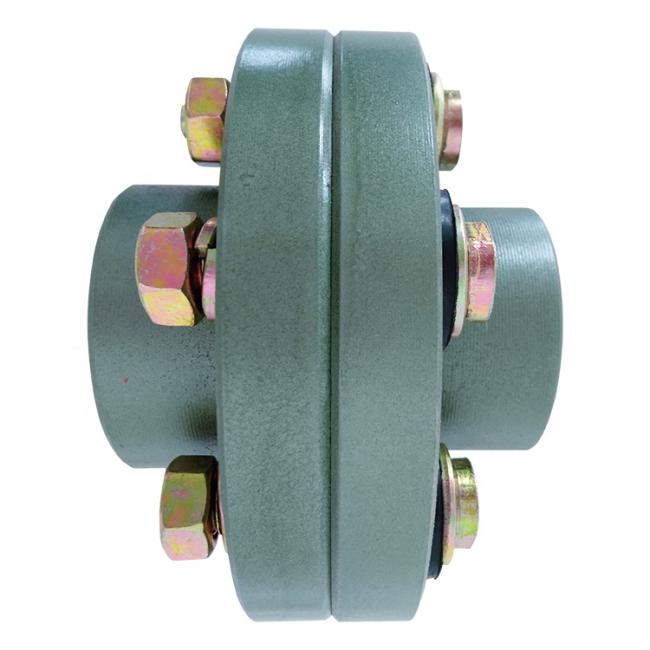

FCL Cast Iron Elastic Sleeve Pin Shaft Coupling For Gearbox
Features of FCL elastic pin coupling:
(1) Gearbox is simple in structure, convenient installation, easy replacement, small size, light weight.
(2) if the installation adjustment can keep two relative displacement within the prescribed limits, coupling will have satisfactory performance and long service life.
(3) It can be widely applied to all kinds of medium and small power transmission shafts, such as reducer, crane, compressor, conveyor, textile machine, hoist and ball mill, which are not loaded by motors.
(4) The allowable relative displacement of the elastic sleeve pin couplings:
Radial displacement: 0.2~0.6mm angular displacement: 0 ° 30 '~1° 30'

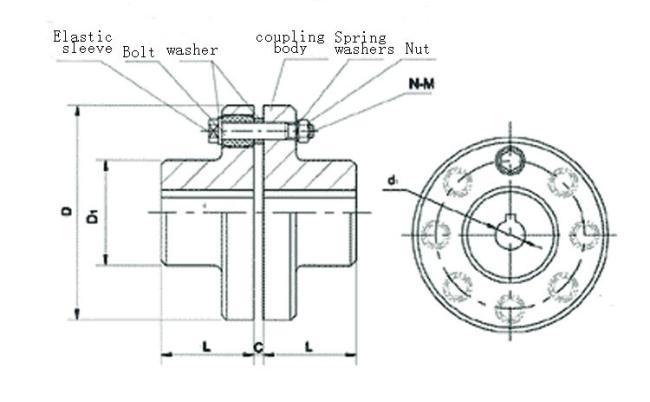

| Type | Max Torque | Max Speed | D | D1 | D2 | L | C | n-M | Weight |
| N.m | t/min | kg | |||||||
| FCL90 | 4 | 4000 | 90 | 36 | 11 | 28 | 3 | 4-M8*50 | 1.8 |
| FCL100 | 10 | 4000 | 100 | 40 | 11 | 35.5 | 3 | 4-M10*56 | 23 |
| FCL112 | 16 | 4000 | 112 | 46 | 13 | 40 | 3 | 4-M10*56 | 3 |
| FCL125 | 25 | 4000 | 125 | 50 | 13 | 45 | 3 | 4-M12*64 | 4 |
| FCL140 | 50 | 4000 | 140 | 65 | 13 | 50 | 3 | 6-M12*64 | 5.5 |
| FCL160 | 110 | 4000 | 160 | 80 | 15 | 56 | 3 | 8-M12*64 | 8 |
| FCL180 | 157 | 3500 | 180 | 90 | 15 | 63 | 3 | 8-M12*64 | 10.5 |
| FCL200 | 245 | 3200 | 200 | 100 | 21 | 71 | 4 | 8-M20*85 | 16.2 |
| FCL224 | 392 | 2850 | 224 | 115 | 21 | 80 | 4 | 8-M20*85 | 22 |
| FCL250 | 618 | 2550 | 250 | 135 | 25 | 90 | 4 | 8-M24*100 | 32 |
| FCL280 | 980 | 2300 | 280 | 140 | 34 | 100 | 4 | 8-M24*116 | 44 |
| FCL315 | 1568 | 2050 | 315 | 160 | 41 | 112 | 4 | 10-M24*116 | 58 |
| FCL355 | 2450 | 1800 | 355 | 180 | 60 | 125 | 5 | 8-M30*150 | 90 |
| FCL400 | 3920 | 1600 | 400 | 200 | 60 | 125 | 5 | 10-M30*150 | 113 |
| FCL450 | 6174 | 1400 | 450 | 224 | 65 | 140 | 5 | 12-M30*150 | 145 |
| FCL560 | 9800 | 1150 | 560 | 250 | 85 | 160 | 5 | 14-M30*150 | 229 |
| FCL630 | 15680 | 1000 | 630 | 280 | 95 | 180 | 5 | 18-M30*150 | 296 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
