45 Steel Single #45 Steel Single Rohs Compliant Low Loss IEC Compliant

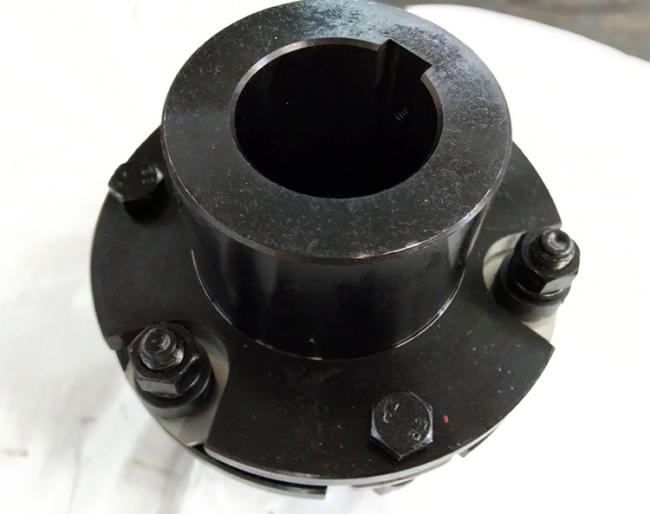

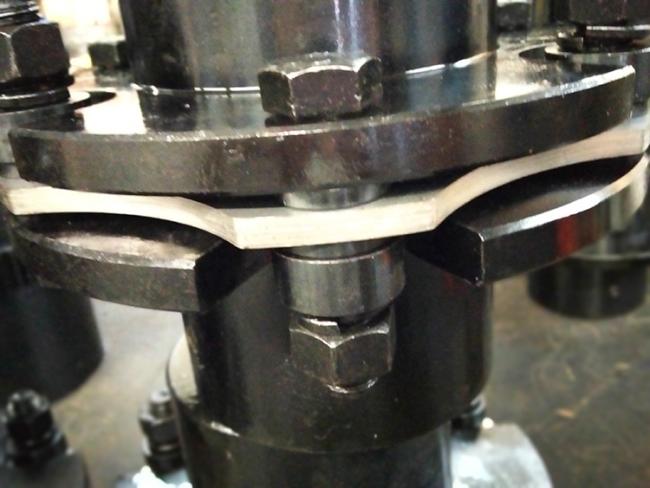

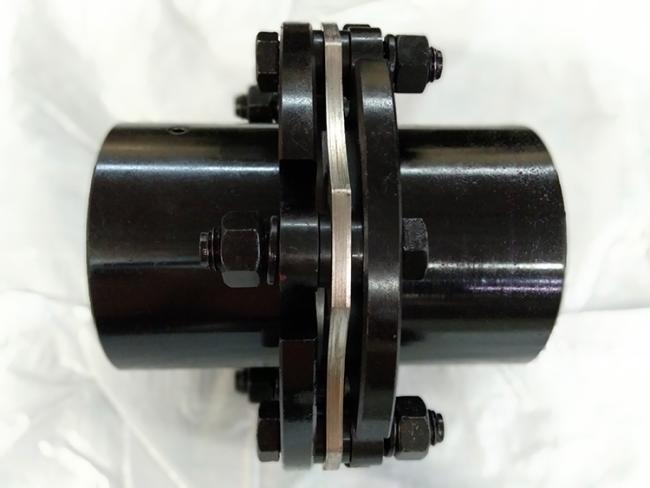

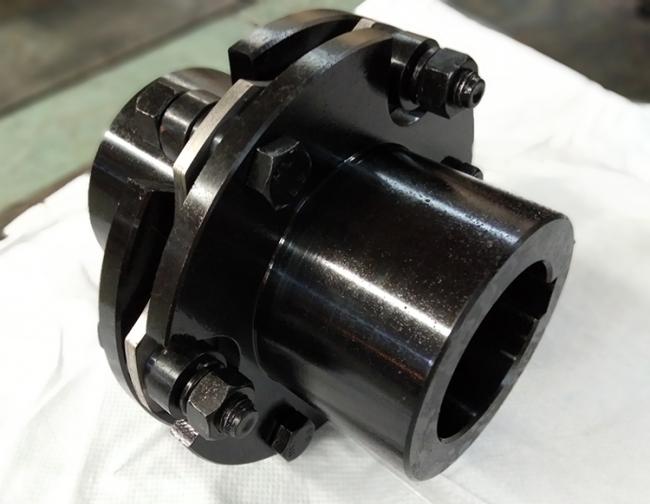

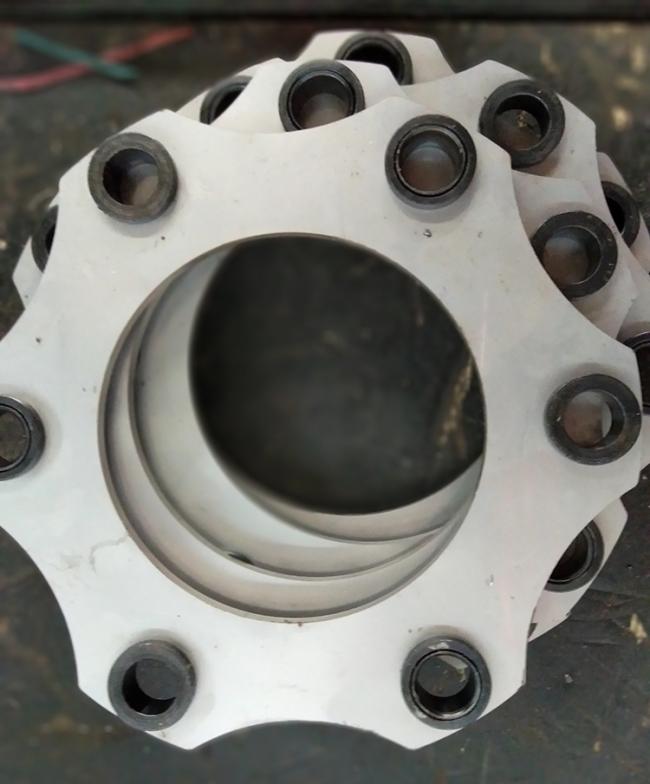

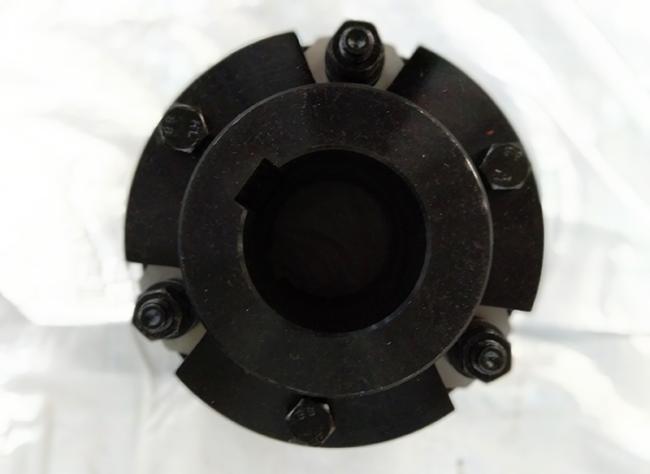

Disc Style #45 steel Single Diaphragm Flexible Coupling For JM
Diaphragm Flexible Coupling Feature
1. Lightweight aluminum version of the industry standard shaft coupling
2. Interchangeable with L and SS line of hubs
3. Corrosion resistant (finished bores passivated for additional protection)
4. Accommodates for angular and parallel shaft misalignment
5. Fail-safe – will still perform if elastomer “spider” fails
6. No metal to metal contact
7. Resistant to oil, dirt, sand, moisture, and grease
8. For high performance servo motor motion control applications
9. High torsional stiffness for precision positioning
10. Eco-Friendly servo motor couplings, Adapted to RoHS Directive with no banned
11. Low inertia for high speed applications (low runout)
12. Zero backlash and low hysteresis ensures repeatable precise positioning
13. Servo Motor Shaft Couplings for Clean Room Applications
|
Power transmission |
0.1 – 70 MW |
|
Speeds |
up to 80 000 rpm |
|
Torque |
up to 1 500 000 Nm |
|
Design models |
single diaphragm double-diaphragm |
|
Connection type |
Inside hub Outside hub Flange |
|
Diaphragm-sleeve connection |
Bolted |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
