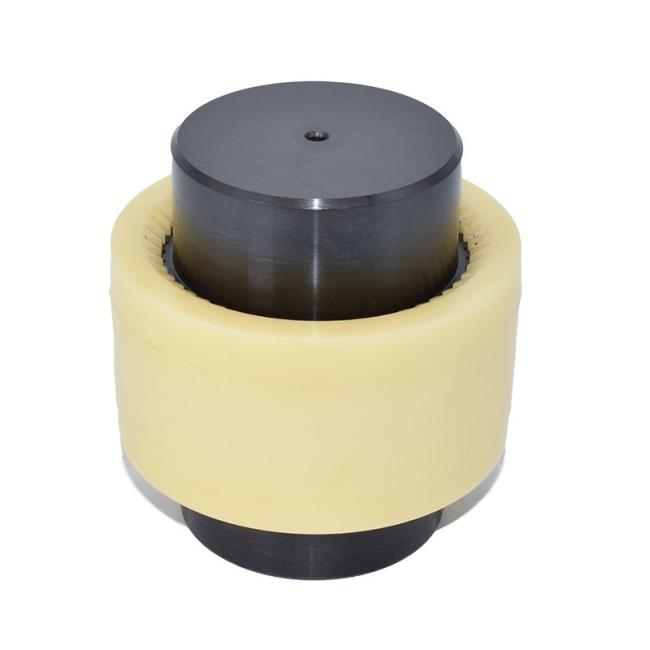

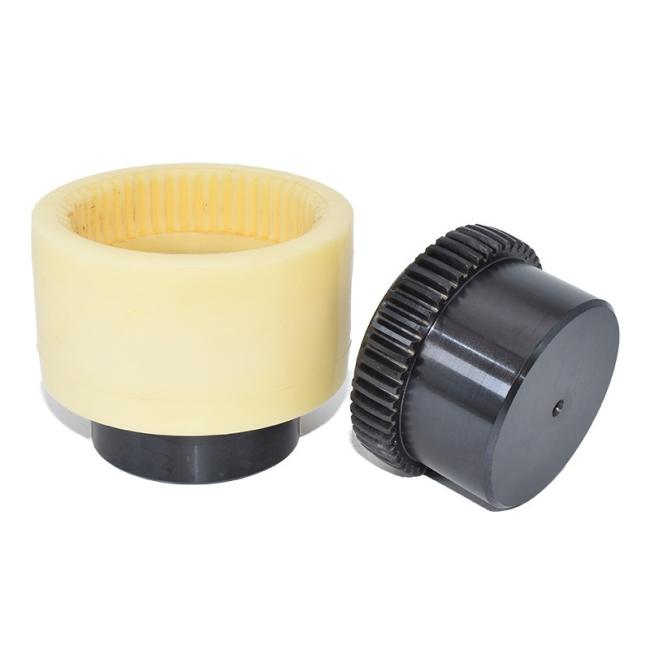

TGL Drum Shape Gear Coupling With Nylon Sleeve TGL1 TGL2 TGL3 TCL4 TGL5 TGL6 TGL7 TGL8 TGL 9 TGL10 TGL11 TGL12 M14 M19 M24 M28 M32 M38 M42 M48 M65 M80 M100 M125
Nylon gear coupling
Gear Coupling follows the international standards of AGMA and JIS ,which easily allows to replace with major industrial products .Our Gear coupling compensate angular misalignment ,parallel misalignment and end float .The fully crowned hub teeth provide minimum loading stress , and ensure longer life.
1. Characteristic
1) High torque, small size, long life and very little loss of transmitting power.
2) The concave-convex flange design allows easy assembly and the high quality gasket prevent leakage of lubricant.

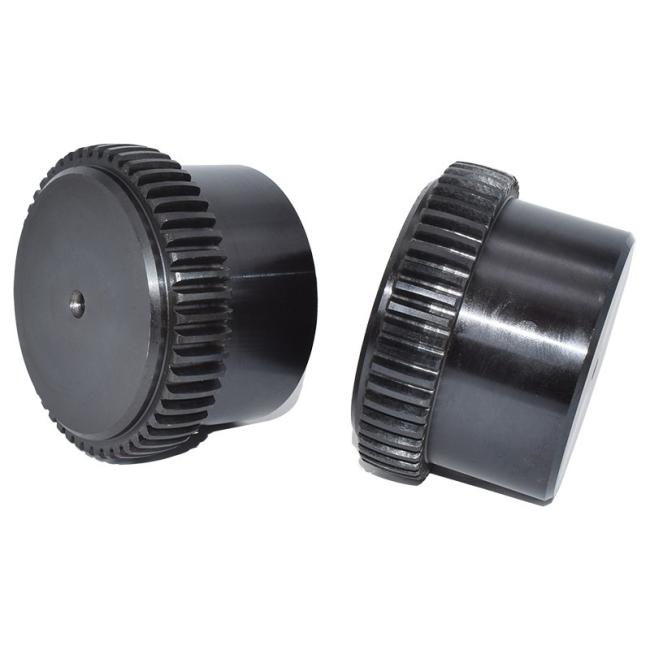

3) Gear Coupling permits parallel, angular misalignments and end floating by crown gear teeth.
2. Application:
a) Heavy load, but compact design coupling.
b) Highs speed up to 5000 rpm(Depending on size ,refer to the data)
c) Low speed, but high starting torque.
d) End float application
e) Spacer required ,due to longer distance between shaft ends
f) Low load and light weight application is not recommendable.
| Size | Rated Torque Tn N • m | Max Speed r/min | Main Size | Bore DIA d | Length L | Rotational inertia kg.m2 | Weight kg | ||||||
| D | D1 | B | S | ||||||||||
| I type | II type | I type | II type | ||||||||||
| TGL1 | M14 | 10 | 10000 | 40 | — | 25 | 38 | — | 4 | 6-14 | 16-27 | 0.264 | 0.2 |
| TGL2 | M19 | 16 | 9000 | 48 | — | 32 | 38 | — | 4 | 8-19 | 20-30 | 0.64 | 0.278 |
| TGL3 | M24 | 31.5 | 8500 | 56 | 58 | 36 | 42 | 52 | 4 | 10-24 | 22-38 | 1.541 | 0.533 |
| TGL4 | M28 | 45 | 8000 | 66 | 70 | 45 | 46 | 56 | 4 | 12-28 | 27-44 | 3.98 | 0.869 |
| TGL6 | M32 | 63 | 7500 | 75 | 85 | 50 | 48 | 58 | 4 | 14-32 | 27-60 | 8.8 | 1.52 |
| TGL6 | M38 | 80 | 6700 | 82 | 90 | 58 | 48 | 58 | 4 | 16-38 | 30-60 | 14.64 | 2.15 |
| TGL7 | M42 | 100 | 6000 | 92 | 100 | 65 | 50 | 60 | 4 | 20-42 | 38-84 | 27.24 | 3.14 |
| TGL8 | M48 | 140 | 5600 | 100 | 100 | 72 | 50 | 60 | 4 | 22-48 | 38-84 | 38.64 | 4.18 |
| TGL9 | M65 | 355 | 4000 | 140 | 140 | 96 | 72 | 85 | 4 | 25-70 | 44-107 | 165.5 | 8.51 |
| TGL10 | M80 | 710 | 3150 | 175 | 175 | 128 | 95 | 95 | 6 | 30-85 | 60-132 | 534.6 | 17.1 |
| TGL11 | M100 | 1250 | 3000 | 210 | 210 | 165 | 102 | 102 | 8 | 40-110 | 84-167 | 1660 | 34.56 |
| TGL12 | M125 | 2500 | 2120 | 270 | 270 | 192 | 135 | 135 | 10 | 50-125 | 84-167 | 4731 | 66.86 |
