Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine JIS Bronze/Brass valve JIS F 7301 5K ,Size DN15 to DN100
Marine Bronze Globe Valve JIS F7301 is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 120 centigrade degree
Specifications
Marine Bronze Marine Valve
1.One year warrenty
2.CCS, ABS, BV, DBV, GL are availiable
3. Competitive price

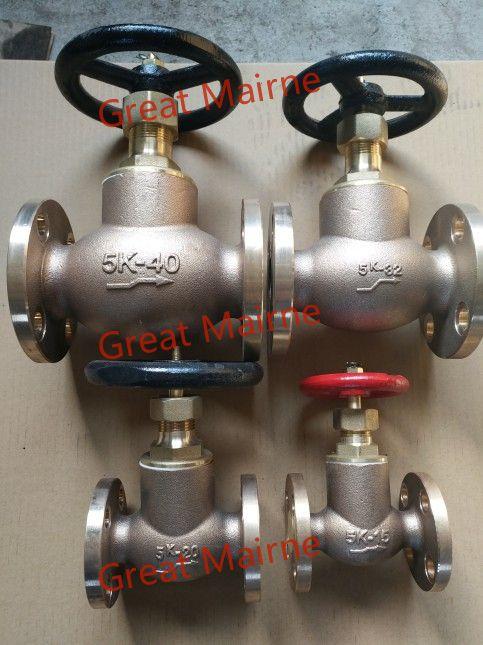

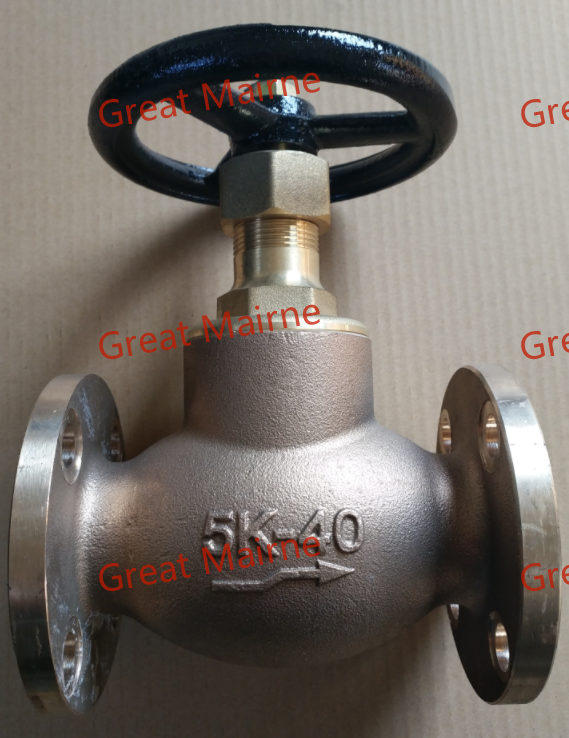

Marine Bronze Globe Valve JIS F7301 5K
Design Standard: JIS F7301-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K
*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet
Main Material:
1-Body: Bronze (BC6)
2-Disc:Bronze (BC6)
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6)
5-Handwheel: Cast Iron (FC200)
Main Size List(mm):
| IMPA Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 |
| 750121 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 750122 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
| 750123 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
| 750124 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
| 750125 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
| 750126 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 |
| 750127 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |
